Recommended Sequence For Adjusting Gear Set

Recommended sequence for adjusting gear set - 6 Spd. Manual Transmission 02X All Wheel Drive





The following work sequence is recommended to save time when the ring gear and pinion shaft have to be adjusted:

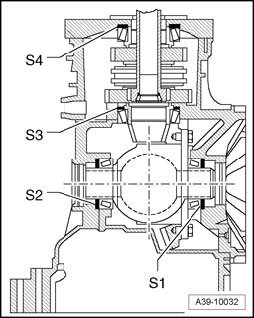

^ Determine total shim thickness "Stotal" (S3 plus S4) for the specified preload on pinion shaft tapered roller bearings.
^ Distribute total shim thickness "Stotal" (S3 plus S4) so that dimension from center of ring gear to end face of pinion shaft corresponds to installation dimension "R" determined during production.
^ Determine total shim thickness "Stotal" (S1 plus S2) for the specified preload on differential tapered roller bearings.
^ Distribute total shim thickness "Stotal" (S1 plus S2) so that the specified backlash between ring gear and pinion shaft is obtained.
