Transmission, General Layout

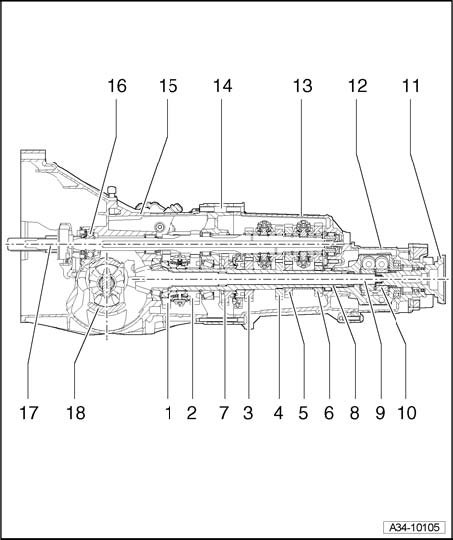

Transmission, general layout - 6 Spd. Manual Transmission 02X All Wheel Drive
1 - 1st gear
2 - 2nd gear
3 - 3rd gear
4 - 4th gear
5 - 5th gear
6 - 6th gear
7 - Reverse gear
8 - Hollow shaft
9 - Pinion shaft (output shaft)
10 - Torsen differential
11 - Flange shaft
12 - Torsen housing
13 - Transmission cover
14 - Bearing housing
15 - Transmission housing
16 - Ball bearing
^ For input shaft
17 - Input shaft
18 - Differential
