Pedal Cluster, Assembly Overview

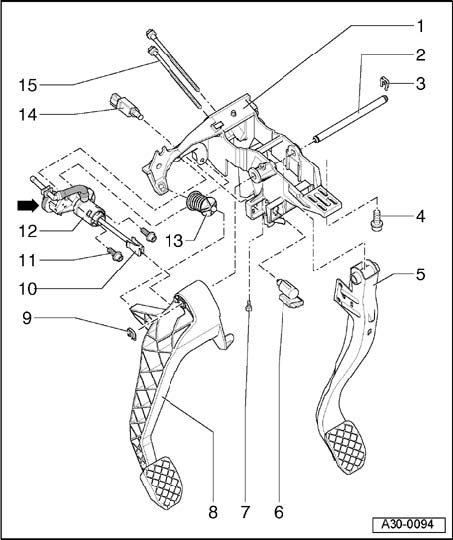

Pedal cluster (LHD vehicles), assembly overview - 6 Spd. Manual Transmission 02X All Wheel Drive





1 - Mounting bracket

2 - Pivot pin for clutch and brake pedal
3 - Retaining clip
4 - Hex socket head bolt, 25 Nm
5 - Brake pedal

^ Maintenance-free bearing, do not grease

6 - Clutch pedal switch F36

^ Can only be installed once
^ Replace

7 - Hex socket head bolt, 5 Nm

^ Secures clutch and brake pedal pivot pin

8 - Clutch pedal

9 - Retaining clip
10 - Retaining clip
11 - Hex socket head bolt, 20 Nm
12 - Master cylinder

^ Gasket - arrow - must not be removed

13 - Over-center spring

^ Black side points toward clutch pedal

14 - Clutch Pedal Starter Interlock Switch F194

^ USA models and vehicles with 3.2liter. FSI engine only
^ Engine can only be started when clutch is fully depressed (switch activated).
^ Replace
^ Can only be installed once

15 - Torx bolt, 25 Nm

^ For securing brake master cylinder/brake servo to mounting bracket
