From VIN 8E_8A 002700

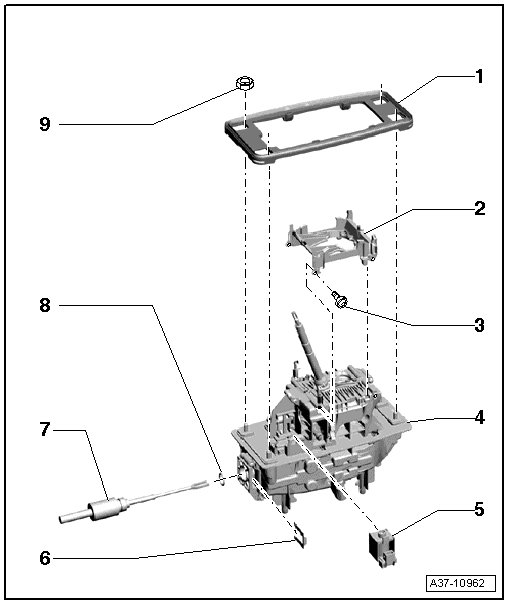

Shift Mechanism Assembly Overview

• Lubricate bearing areas and slide surfaces with polycarbamide grease (G 052 142 A2).





1 Rubber seal

2 Adapter

• Placed on shift mechanism function unit and attached with bolts => [ (Item 3) Bolt ]

3 Bolt

• 2 Nm

• Quantity: 4

4 Selector mechanism function unit

5 Shift lock solenoid (N110)

• Refer to => [ Shift Lock Solenoid ] 09LA Transmission

6 Retaining clip

• Secures selector lever cable on selector mechanism function unit

7 Selector lever cable

• Refer to => [ Selector Lever Cable and Locking Cable Assembly Overview ] Selector Lever Cable and Locking Cable Assembly Overview

• Refer to => [ Selector Lever Cable, Checking and Adjusting ] Selector Lever Cable, Checking and Adjusting

8 O-Ring

• Replace

9 Nut

• 8 Nm

• Quantity: 4; for attaching selector mechanism function unit to the body
