Selector Lever Cable and Locking Cable, Components Overview

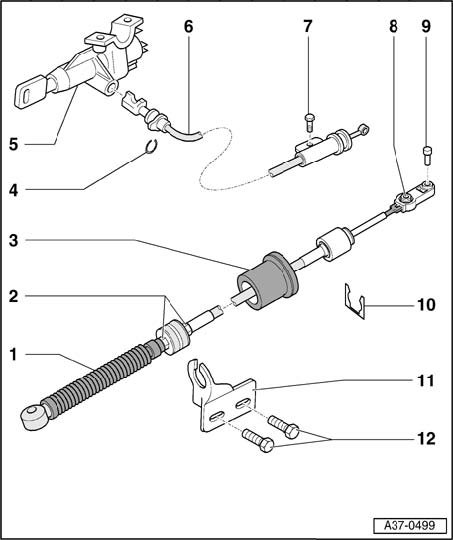

Selector lever cable and locking cable, components overview - 09L, 6 Speed AWD A/T

Note:
^ Do not bend or kink the selector lever cable.
^ Before installing, lightly lubricate cable eye and ball socket with polycarbamide grease G 052 142 A2.





1 - Selector lever cable

^ Must not be kinked

2 - Lock nuts, 12 Nm
3 - Sleeve for selector lever cable

^ Press into selector mechanism cover (bottom).

4 - Circlip
5 - Starter switch

^ With ignition key removal lock

6 - Locking cable for ignition key removal lock

^ Must not be kinked

7 - Hex bolt, 9 Nm
8 - Clamping bolt for selector lever cable, 13 Nm

^ Loosen 1 turn for adjusting, do NOT remove completely

9 - Pin for selector lever cable

^ To remove selector lever cable pull plastic locking spring on selector mechanism forward slightly and push up pin just far enough to release cable.

10 - Retaining clip for selector lever cable

^ Replace

11 - Support bracket

^ For securing selector lever cable to transmission

12 - Hex bolt, 10 Nm
