Head Restraint, Removing and Installing

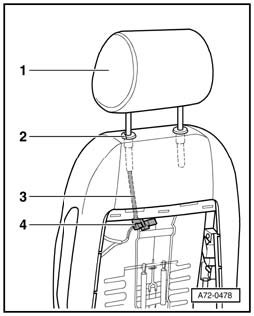

Head Restraint, Removing and Installing

- Remove backrest cover panel.







- Disconnect connector - 4 -.
- Press button - 2 -.

Installing

- Installation is in reverse order of removal.
