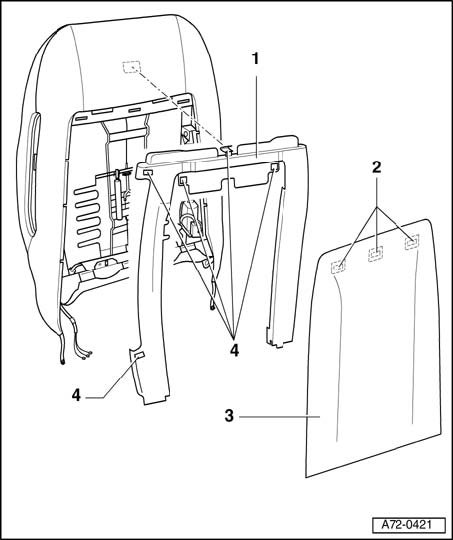

Backrest Frame, Assembly Overview

Backrest Frame, Assembly Overview







1 - Backrest frame

Removing
- Remove backrest cover panel.
- Pry off clips - 4 - (5x).
- Remove backrest frame - 1 -.

Installing
- Installation is in reverse order of removal.

2 - Staples (3x)
3 - Backrest trim
4 - Clips (5x)
