Backrest Adjuster, Removing and Installing

Backrest Adjuster, Removing and Installing

Special tools and workshop equipment required







- Assembly tool 3399

Removing

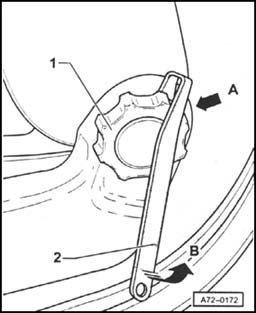

- Turn backrest adjuster - 1 - until detent is visible from rear - arrow A -. Use light, if necessary.
- Hook in assembly tool 3399 - 2 - and lever in direction of arrow - B -.
- Turn backrest adjuster - 1 - an additional 120 degrees turn.
- Hook in special tool 3399 - 2 - and lever in direction of arrow - B -.
- Detach backrest adjuster - 1 -.

Installing

NOTE: After installing backrest adjuster, replace if it is too loose.
