Mobile Phone Holder In Center Console, Assembly Overview

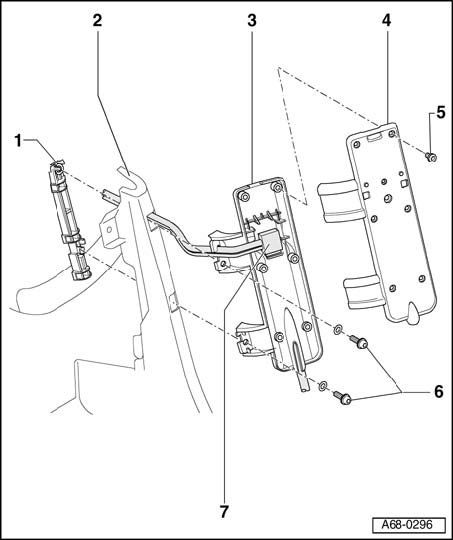

Mobile Phone Holder In Center Console, Assembly Overview







1 - Threaded moulding
- Engaged in center console from rear

2 - Center console
- With mounting holes for base plate
- Retrofitting mounting holes

3 - Mounting plate
4 - Base plate
- For mobile phone handset holder

5 - Bolts (6x)
- Tightening torque 0.5 Nm

6 - Bolts (2x)
- Tightening torque 1.5 Nm

7 - Connector

NOTE: Ensure correct seating of connector.
