Satellite Tuner Antenna, Removing and Installing



Satellite Tuner Antenna, Removing And Installing

Removing

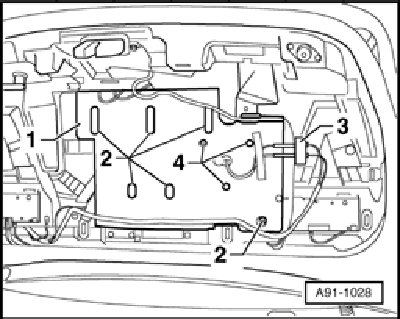

- Remove rear lid trim.







- Disconnect harness connectors -3-.
- Remove bolts -2- and remove base plate -1- with antenna.
- Remove bolts -4- and remove antenna from base plate -1-

Installing
Installation is performed in the reverse order of removal.
