Transmission, Mounting on Assembly Stand

Transmission, mounting on assembly stand - 6 Spd. M/T 01X Front Wheel Drive

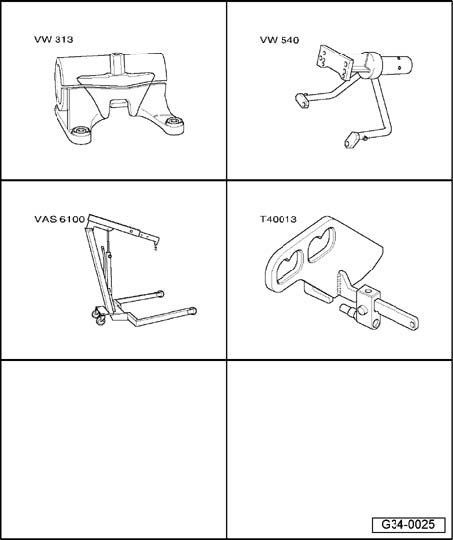

Special tools, testers and auxiliary items required

^ Support clamp VW313
^ Engine/transmission support VW540
^ Workshop crane VAS6100
^ Transmission lift hook T40013





Procedure

- Insert transmission lift hook T40013 in lifting eye on transmission and secure.
- Fasten hook of workshop crane VAS6100 in 4th notch - arrow - on transmission lift hook T40013.
- Lift transmission with workshop crane VAS6100 and transmission lift hook T40013.





- Secure holding fixture VW 540 to transmission and install into support clamp VW313.
