Table of Adjustments

Table of adjustments - 6 Spd. M/T 01X Front Wheel Drive

Note:

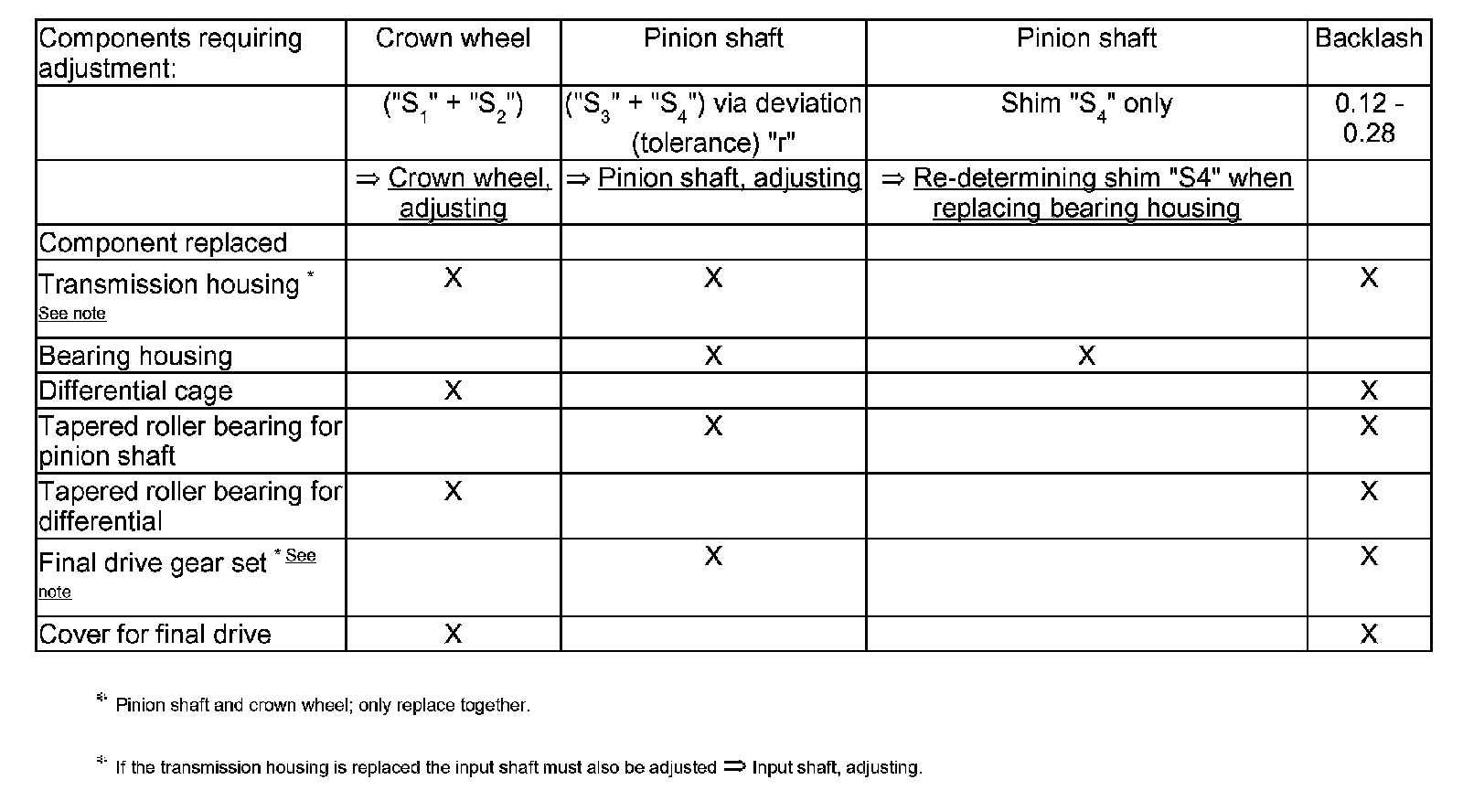

^ If repairs have been perform to the transmission, it is only necessary to adjust the pinion shaft, crown wheel or final drive set if components have been replaced which have a direct effect on the adjustment of the final drive. Refer to the following table to avoid unnecessary adjustment work:
