Transmission, Overview

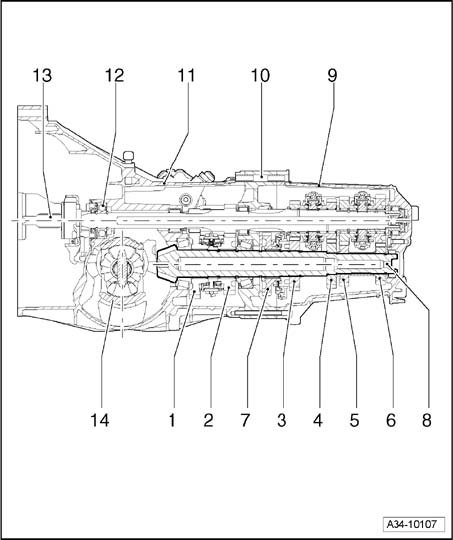

Transmission, overview - 6 Spd. M/T 01X Front Wheel Drive
1 - 1st gear
2 - 2nd gear
3 - 3rd gear
4 - 4th gear
5 - 5th gear
6 - 6th gear
7 - Reverse gear
8 - Pinion shaft (output shaft)
9 - Transmission cover
10 - Bearing housing
11 - Transmission housing
12 - Ball bearing
^ For input shaft
13 - Input shaft (main shaft)
14 - Differential
