Transmission Layout

Transmission layout - 6 Spd. M/T 01X Front Wheel Drive

Identification

Note:
^ - Arrows - point in direction of travel.





1 - Engine

2 - Clutch

3 - Manual transmission

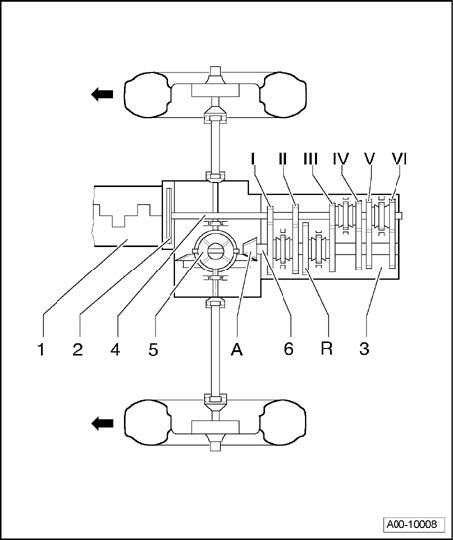

^ Diagram of transmission layout

4 - Input shaft (main shaft)

5 - Differential

6 - Pinion shaft (output shaft)

I - 1st gear

II - 2nd gear

III - 3rd gear

IV - 4th gear

V - 5th gear

VI - 6th gear

R - Reverse gear

A - Final drive
