Home >> Audi >> 2008 >> A4 Cabriolet (8HE) L4-2.0L Turbo (BWT) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Application and ID >> 6 SPD. M/T 01X FWD >> Code Letters, Allocation, Transmission Ratios, Capacities

Code Letters, Allocation, Transmission Ratios, Capacities



Code letters, allocation, transmission ratios, capacities - 6 Spd. M/T 01X Front Wheel Drive

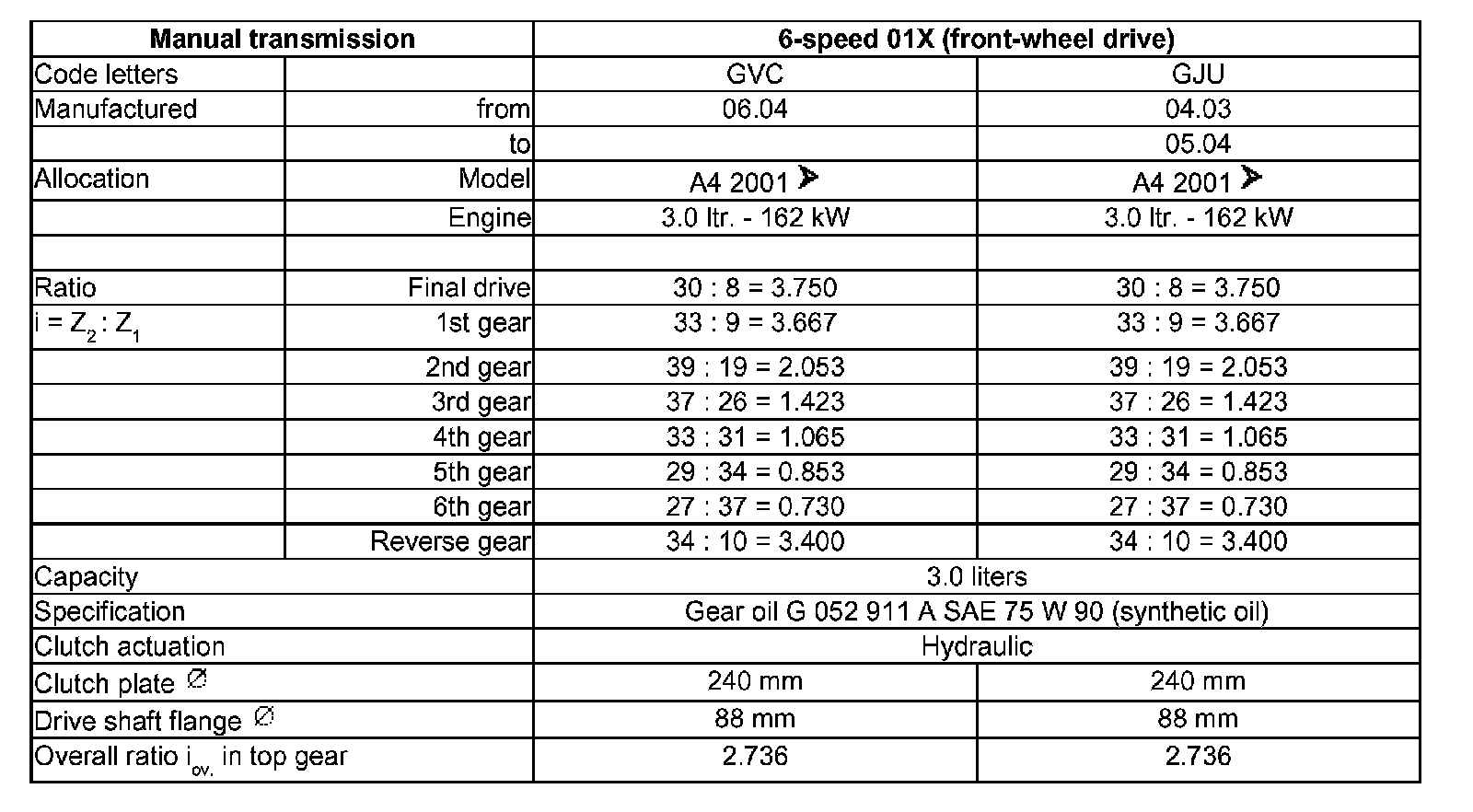

Code Letters, Allocation, Transmission Ratios & Capacities (Part 1):

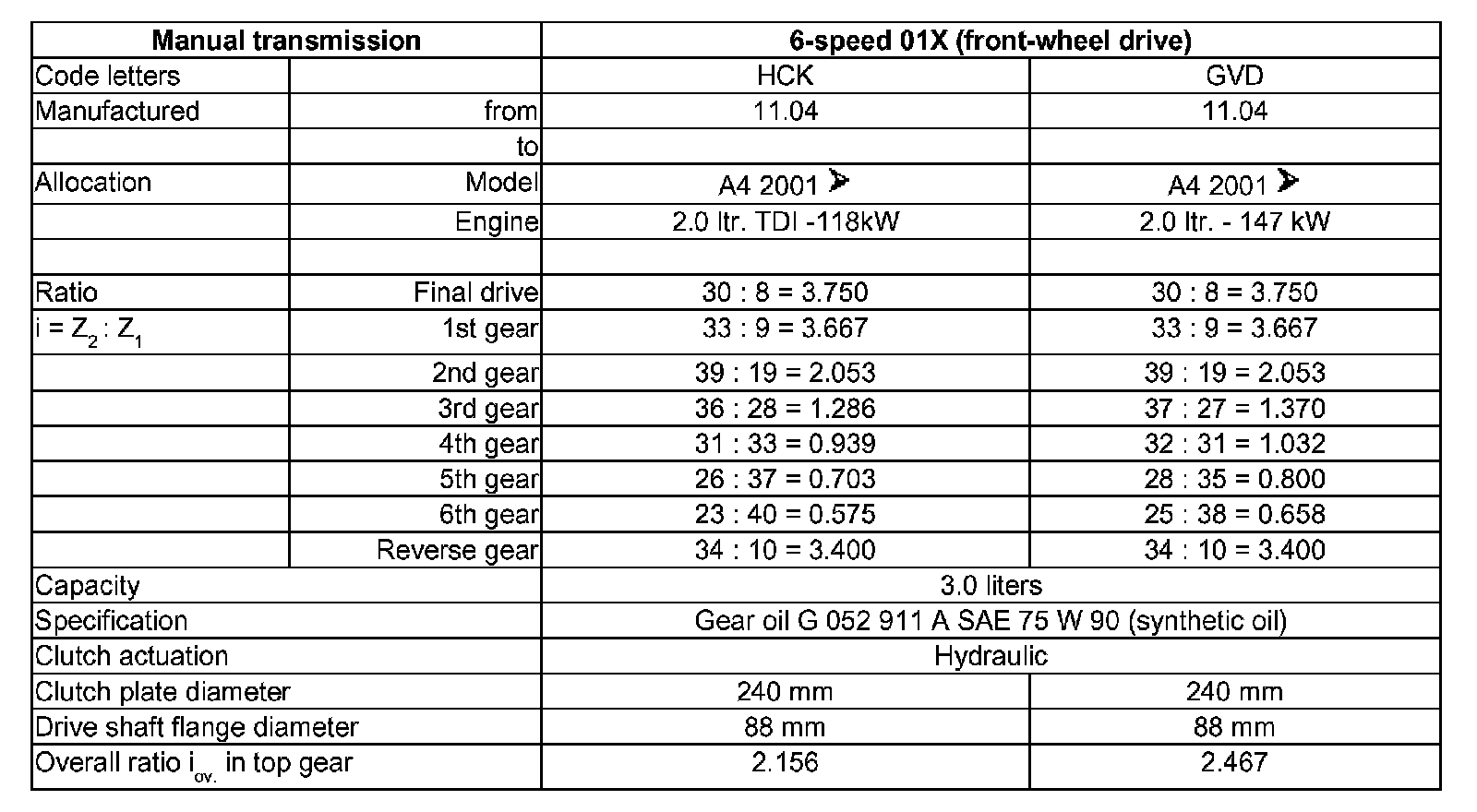

Code Letters, Allocation, Transmission Ratios & Capacities (Part 2):
