Controls, Housing

Special Tools

Special tools, testers and auxiliary items required

• Old oil collecting and extracting device (VAG 1782 )

• Drip tray for VAS 6100 (VAS 6208)

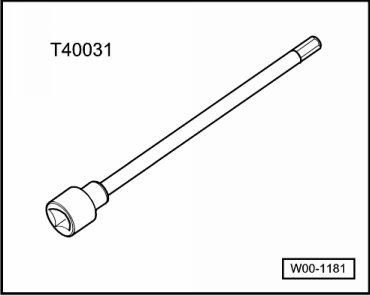

• Socket and key (T40031)

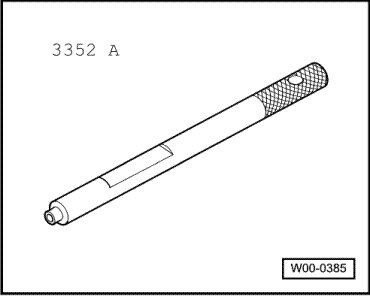

• Adjustment pin for shift lock 3 (3352 A)





• Triple square socket driver (3357)





• ATF filler system F/CVT transmission (VAS 5162)





• Vehicle diagnosis, testing and information system ( VAS 5051) with diagnostic cable (VAS 5051/5A)

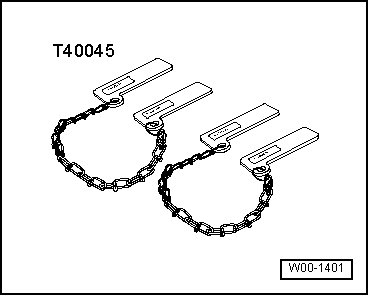

• Fender insert pads (T40045)









Special tools, testers and auxiliary items required

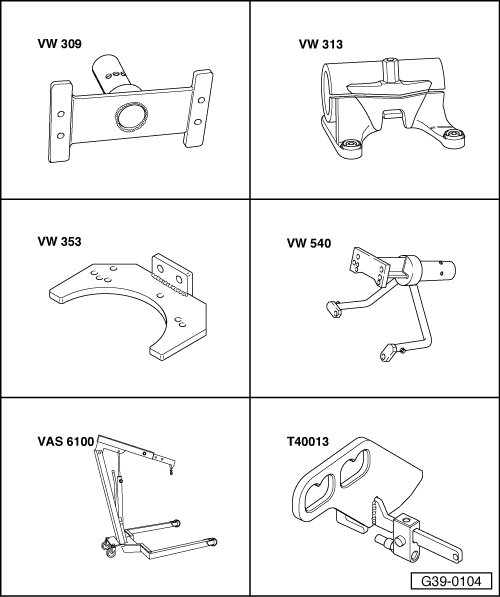

• Holding plate (VW 309)

• Holding fixture (VW 313)

• Transmission support (VW 353)

• Engine and transmission holder (VW 540)

• Workshop crane (VAS 6100)

• Lifting tackle (T40013)





Special tools, testers and auxiliary items required

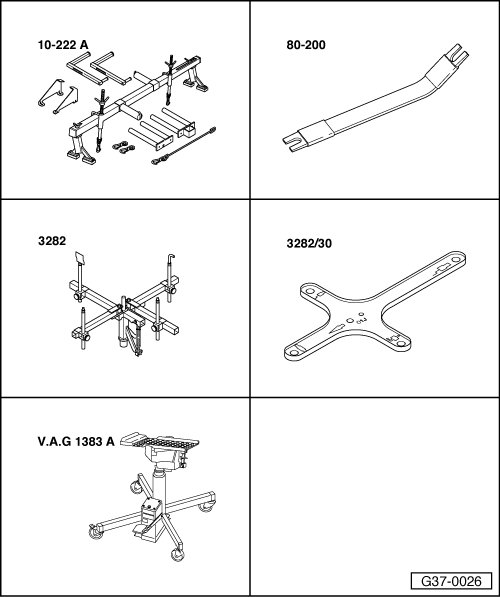

• Engine support bridge (10-222 A)

• Pry lever (80-200)

• Transmission support (3282)

• Adjustment plate (3282/30)

• Engine and transmission jack (VAG 1383 A )
