Vehicles From VIN 8E 6A156500

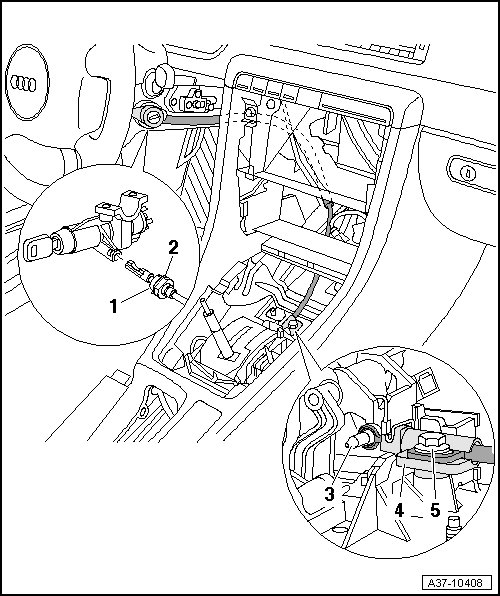

Locking Lever





1 Locking cable

2 Retaining clip

3 Locking cable eye pins

4 Locking cable bracket

5 Bolt, 10 Nm

• For adjusting the locking cable

Removing

• Do not kink the locking cable.

CAUTION!
Observe the procedures for disconnecting the battery.

- Disconnect the negative battery cable Ground (GND).

- Remove the storage compartment on the driver's side.

- Remove the steering column trim.

- Remove the (A/C) system control unit.

- Remove the ashtray in the center console.

- Remove the cover for the shift mechanism. Refer to => [ Shift Mechanism Cover ] Shift Mechanism Cover.

- Turn the ignition key to the driving position "ignition on ".

- Place the selector lever in the "P" position.

- Lift the retaining clip - 2 - from the interlock lever and pull the locking cable - 1 - out of the ignition/starter switch.





- Raise the retaining tab - A - and remove the locking lever in the direction of - arrow - from the locking cable eye pins.





Installing

Installation is in the reverse order of removal, note the following:

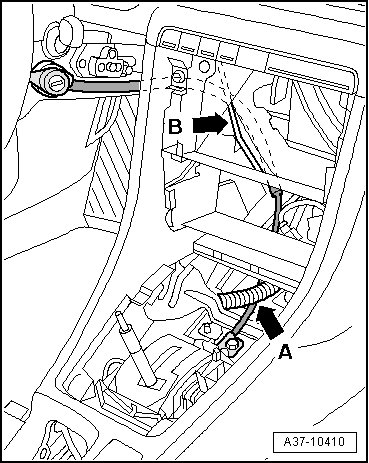

- Route the locking cable without kinks under the wiring harness - arrow A - and behind the instrument panel brace - arrow B -.





- Turn the ignition key into the driving position "ignition on".

- Insert the locking cable - 1 - into the ignition/starter switch.





- Check the interlock lever - 2 -.

- Bring the ignition/starter switch into the locking position " ignition off".

- Check whether the selector lever is in the "P" position.

- Slide the locking cable in the opposite direction of the - arrow - onto the locking cable eye pins.





• The retaining tab - A - must engage over the locking cable

- Adjust the locking cable. Refer to => [ Locking Cable Adjusting ] Adjustments.

- Observe the procedures for connecting the battery.
