Shift Mechanism (Through VIN 8E_6A156499,), Assembly Overview

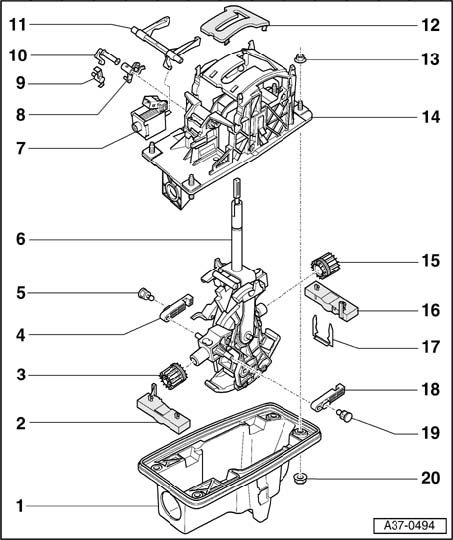

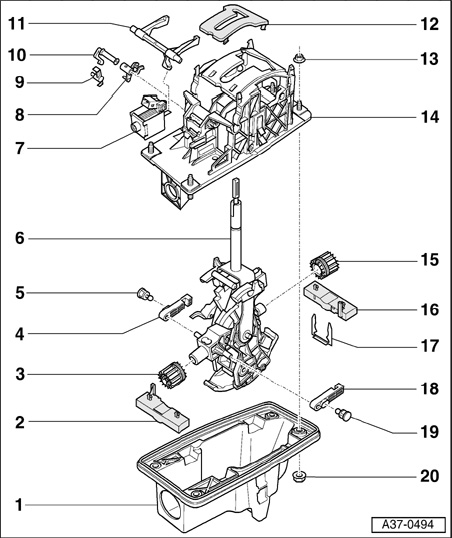

Shift mechanism (through VIN 8E_6A156499,), assembly overview - 01J, Continuously Variable Transmission (CVT)

Note:
^ Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2.





1 - Shift mechanism bottom cover
2 - Bracket

^ For selector lever

3 - Bushing
4 - Tiptronic locking lever
5 - Pivot pin
6 - Selector lever
7 - Shift lock solenoid N110
8 - Operating lever for locking cable
9 - Lock for locking cable
10 - Lever for locking cable
11 - Locking lever
12 - Shift lever guide

Note:
^ If selector lever guide or shift unit is faulty, entire shift mechanism must be replaced. It is not possible to adjust both components using shop equipment.

13 - Nut

^ 10 Nm

14 - Shift unit
15 - Bushing
16 - Retaining bracket for selector lever
17 - Retaining clip
18 - Tiptronic locking lever
19 - Pivot pin
20 - Nut

^ 10 Nm
