Selector Lever Handle, Shift Mechanism Cover (From VIN 8E_6A156500), Assembly Overview

Selector lever handle, shift mechanism cover (from VIN 8E_6A156500), assembly overview - 01J, Continuously Variable Transmission (CVT)

Note:
^ Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2.

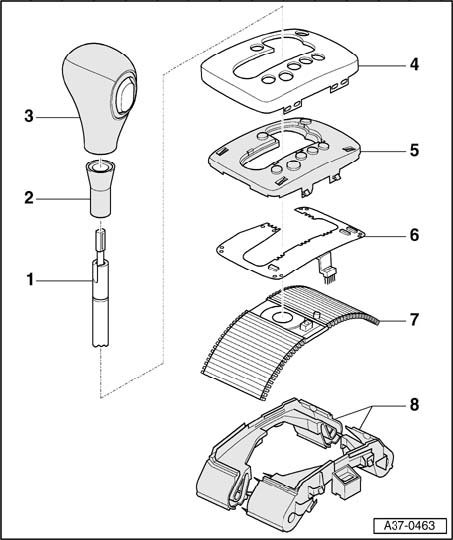

1 - Selector lever
2 - Selector lever shaft piece
3 - Selector lever handle
4 - Cover

^ With selector scale and Tiptronic gate

5 - Symbol panel

^ Clipped into cover

6 - Printed circuit board

^ With integrated Tiptronic Switch F189
^ Switch consists of 3 Hall sensors, which are activated by a magnet on transverse slide of cover strip.
^ Before replacing circuit board when DTC "18161" is entered in DTC memory, first check adjustment of selector lever cable.

7 - Cover strip

^ With solenoid for Tiptronic Switch F189 on transverse slide

8 - Masking panel guide
