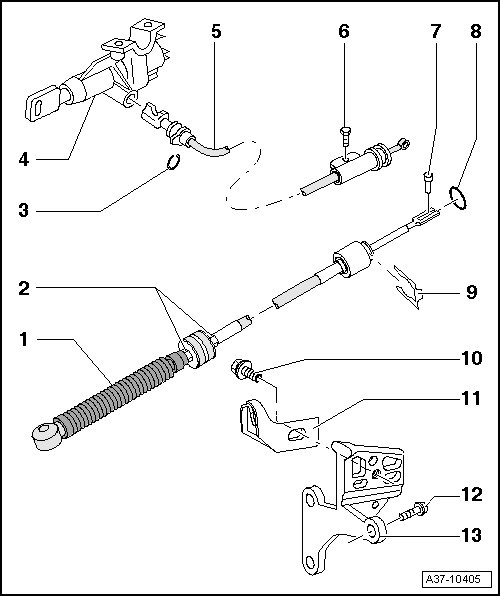

Selector Lever Cable and Locking Cable Assembly Overview

• Do not bend or kink the selector lever cable.

• Lightly grease the eyelet and the ball socket with polycarbamide grease (G 052 142 A2) before installing.





1 Selector lever cable

• Do not bend or kink, lightly grease the cable eye and the ball socket before installing.

• Removing and installing, refer to => [ Selector Lever Cable ] Selector Lever Cable.

• Adjusting, refer to => [ Selector Lever Cable Adjusting ] Adjustments.

• In case of damaged rubber boots, the selector lever cable must be replaced.

• When installing, make sure that rubber sleeve on the transmission side is not twisted.

2 Lock nuts

• 13 Nm

3 Retaining clip

4 Ignition/starter switch

• With ignition key removal lock.

5 Locking cable

• For ignition key removal lock.

• Not to be kinked.

• Removing and installing, refer to => [ Locking Lever ] Locking Lever.

• Adjusting, refer to => [ Locking Cable Adjusting ] Adjustments.

6 Bolt

• 9 Nm

7 Clamping screw

• 13 Nm

• For the selector lever cable.

• Loosen 1 turn for adjusting, do NOT remove completely.

8 O-ring

• Always replace

9 Retaining clip for selector lever cable

10 Bolt

• 20 Nm

• For securing the bracket to the selector lever cable bracket.

11 Bracket for selector lever cable

• Different equipment depending on version.

12 Bolt

• 20 Nm

• Quantity: 3

• For securing the selector lever cable bracket to the transmission.

13 Bracket for selector lever cable

• Different equipment depending on version.
