Transmission, Securing to Engine and Transmission Holder

Transmission, Securing to Engine and Transmission Holder

Special tools, testers and auxiliary items required

• Holding plate (VW 309)

• Transmission support (VW 353)

• Engine and Transmission Holder (VW 540)

• Engine and Transmission Holder (VAS 6095)

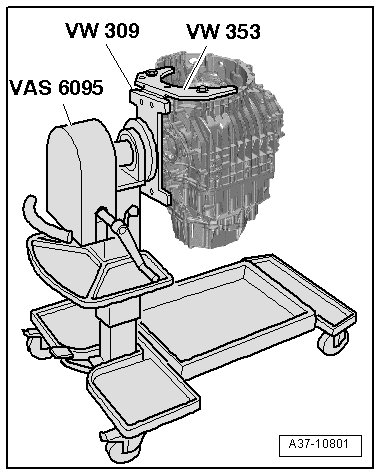

Suspending transmission vertically





- Fasten transmission support (VW 353) to the transmission using bolts - 1 - and - 2 -.

- Attach the holding plate (VW 309) to the transmission support (VW 353).

- Using workshop crane (VAS 6100) place the transmission into the engine and transmission holder ( VAS 6095).

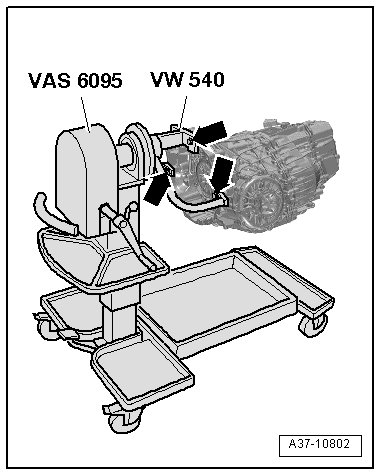

Securing transmission in horizontal position





- Secure engine and transmission holder (VW 540 ) to the transmission - arrows -.

- Using workshop crane (VAS 6100) place the transmission into the engine and transmission holder ( VAS 6095).
