Transmission, Securing to Engine and Transmission Holder

Transmission, Securing to Engine and Transmission Holder

Special tools, testers and auxiliary items required

^ Holding plate VW 309
^ Transmission support VW 353
^ Engine and Transmission Holder VW 540
^ Engine and Transmission Holder VAS 6095

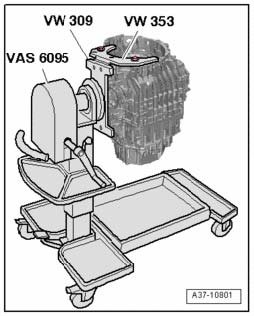

Suspending transmission vertically

- Fasten transmission support VW 353 to the transmission using bolts - 1 - and - 2 -.
- Attach the holding plate VW 309 to the transmission support VW 353.





- Using workshop crane VAS 6100 place the transmission into the engine and transmission holder VAS 6095.

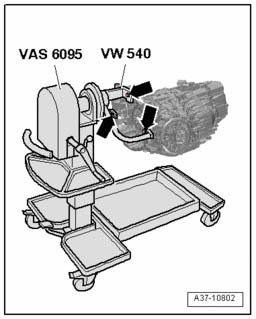

Securing transmission in horizontal position

- Secure engine and transmission holder VW 540 to the transmission - arrows -.
- Using workshop crane VAS 6100 place the transmission into the engine and transmission holder VAS 6095.
