Transmission Bearing Designations Overview

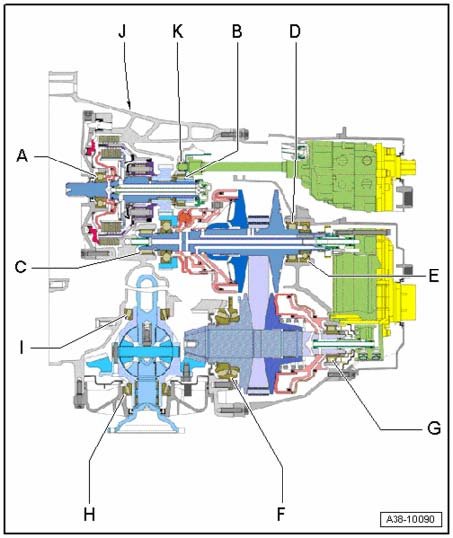

Transmission Bearing Designations Overview - 01J, Continuously Variable Transmission (CVT)





A - Bearing "A"

^ Transmission input shaft ball bearing

B - Bearing "B"

^ Input shaft roller bearing
^ Can only be replaced together with input shaft

C - Bearing "C"

^ Disc set roller bearing "I"

D - Bearing "D"

^ Disc set roller bearing "I"
^ Different versions: with or without inner race

E - Bearing "E"

^ Disc set ball bearing "I"

F - Bearing "F"

^ Pinion shaft/disc set ball bearing "II"

G - Bearing "G"

^ Disc set roller bearing "II"
^ Cannot be replaced separately

H - Bearing "H"

^ Differential bearing
^ Cannot be replaced separately

I - Bearing "I"

^ Differential bearing
^ Cannot be replaced separately

J - Bearing "J"

^ Right flange shaft ball bearing

K - Bearing "K"

^ ATF pump shaft bearing
^ Cannot be replaced separately
