6 SPD. M/T 01X FWD

Clutch release mechanism, servicing - 6 Spd. M/T 01X Front Wheel Drive

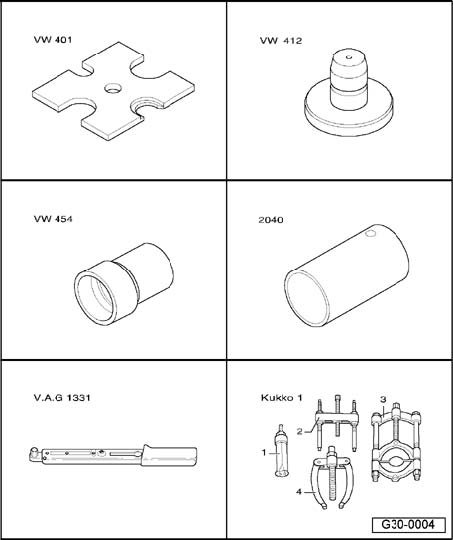

Special tools, testers and auxiliary items required

^ Thrust plate VW 401
^ Thrust disc VW 412
^ Thrust tube VW 454
^ Press tube 2040
^ Torque wrench V.A.G 1331
^ - 1 - Internal puller Kukko 21/4
^ - 4 - Counter-support Kukko 22/1
^ Locking fluid AMV 185 101 A1
^ Sealing grease G 052 128 A1
^ Copper grease Z 381 351 TE
^ Adhesive AMV 195 KD1 01





1 - Release bearing

^ Do not wash out; wipe clean only
^ Replace bearings if noisy
^ Servicing release bearing with glued plastic ring
^ Checking release bearing with mechanically attached plastic ring
^ Replace if running mark (groove) is too deep
^ Retainer tabs on release bearing must engage in release lever

2 - Clutch release lever

^ Before installing, lubricate area which makes contact with operating rod of slave cylinder with copper grease Z381351TE.

3 - Torx bolt, 35Nm

^ 3 (Qty.)
^ Apply locking fluid AMV 185 101 A1 when installing

4 - Retaining spring

^ Secure to clutch release lever

5 - Guide sleeve

^ Installation position: Oil drain hole points downward.
^ Before removing and installing, cover input shaft splines with a shrink-fit hose to protect oil seal.

6 - Oil seal

^ For input shaft
^ Pack space between sealing lip and dust lip half full with sealing grease G 052 128 A1.

7 - O-ring

^ Always replace

8 - Convex washer
9 - Intermediate piece

^ Installation position: insert locating element between ribs of housing

10 - Ball head stud

^ Lubricate with MoS2 grease.

11 - Transmission
12 - Slave cylinder

^ Do not operate clutch pedal after slave cylinder has been removed.
^ Follow correct procedure when bleeding.
^ Tighten bleeder valve to 4.5Nm.
^ When installing push in until the securing bolt can be installed.

13 - Hex socket head bolt, 23 Nm

^ Self-locking
^ Replace

14 - Bracket

^ For line/hose assembly
^ Bolt to transmission with clutch slave cylinder

15 - Operating rod

^ Lubricate end of operating rod with copper grease Z381351TE.





Checking and servicing release bearing with glued plastic ring

Identification: inner side of plastic ring has three tabs - arrows -.

The plastic ring - arrows - may come loose from the release bearing when the transmission or release bearing is removed. The release bearing does not have to be replaced if this happens.

- Before installing the transmission, glue the loose plastic ring back onto the bearing ring with adhesive AMV195KD101.

Three square tabs - arrows - of the plastic ring engage in recesses of bearing ring.

^ The release bearing must be replaced if the groove worn on the plastic ring is deeper than 0.8mm.





Checking release bearing with mechanically attached plastic ring

Identification: retaining tabs around plastic ring - arrows -.

^ The release bearing must be replaced if plastic ring - 1 - has come loose.
^ The release bearing - 3 - must be replaced if groove - arrow 2 - worn on the plastic ring - 1 - is deeper than 0.8mm.





Pulling oil seal out of guide sleeve

A - Counter-support, e.g. Kukko 22/1

B - Internal puller 23.5...30 mm, e.g. Kukko 21/4





Pressing oil seal into guide sleeve (press in onto stop)

Note:
^ The open side of seal faces toward thrust tube VW 454.
