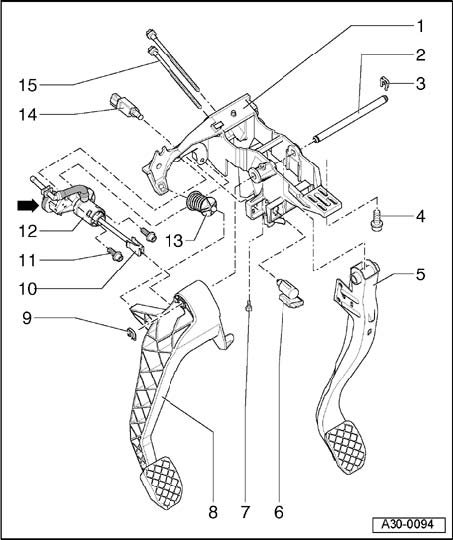

Pedal Cluster, Assembly Overview

Pedal cluster - LHD vehicles, assembly overview - 6 Spd. M/T 01X Front Wheel Drive





1 - Mounting bracket
2 - Pivot pin for clutch and brake pedal
3 - Retaining clip
4 - Hex socket head bolt - 25 Nm -
5 - Brake pedal

^ Maintenance-free bearing, do not grease

6 - Clutch pedal switch F 36

^ Only installed one time
^ Replace

7 - Hex socket head bolt - 5 Nm -

^ Secures clutch and brake pedal pivot pin

8 - Clutch pedal
9 - Retaining clip
10 - Retaining clip
11 - Hex socket head bolt - 20 Nm -
12 - Master cylinder

^ Gasket - arrow - must not be removed

13 - Over-center spring

^ Black side points toward clutch pedal

14 - Clutch pedal starter interlock switch F194

^ Only for USA
^ Engine can only be started when clutch is fully depressed (clutch pedal starter interlock switch activated).
^ Removing and installing
^ Replace
^ Only install one time

15 - Torx bolt, 25Nm

^ For securing brake master cylinder/brake servo to mounting bracket
