Vehicle Level Sensor Individual

Vehicle Level Sensor Individual

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1332)

• Torque Wrench (V.A.G 1410)

When removing and installing control arm, it is necessary to loosen Left Front Level Control System Sensor (G78) retaining clip.

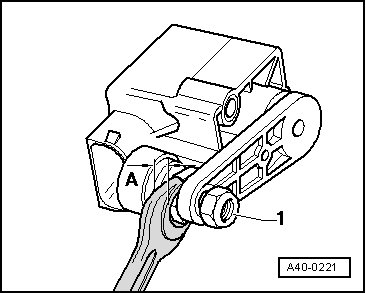

• To install connecting link to Left Front Level Control System Sensor (G78) crank, use an open-end wrench with dimension - A - = 4 mm to avoid damaging the seal.

- Dimension - A - = 4mm





- Mount wheel and tighten.

- Left Front Level Control System Sensor (G78) connecting link retaining clip is secured at control arm between stops with a clamp.

When installing headlamp range control, ensure correct position of crank and connecting link to each other.

• Connecting link must face forward diagonally.

• Crank must face rearward.
