Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Panel



Main Fuse, Connector Stations, Relay/fuse Carriers, Fuse Panel Part 1:




Main Fuse, Connector Stations, Relay/fuse Carriers, Fuse Panel Part 2:






Connector Stations

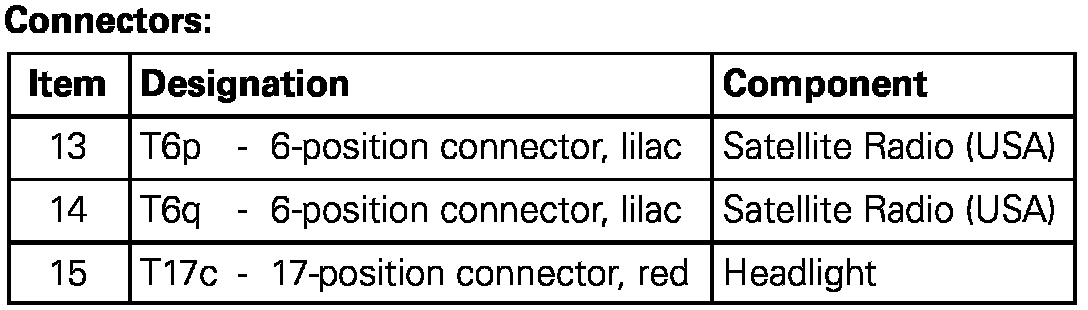

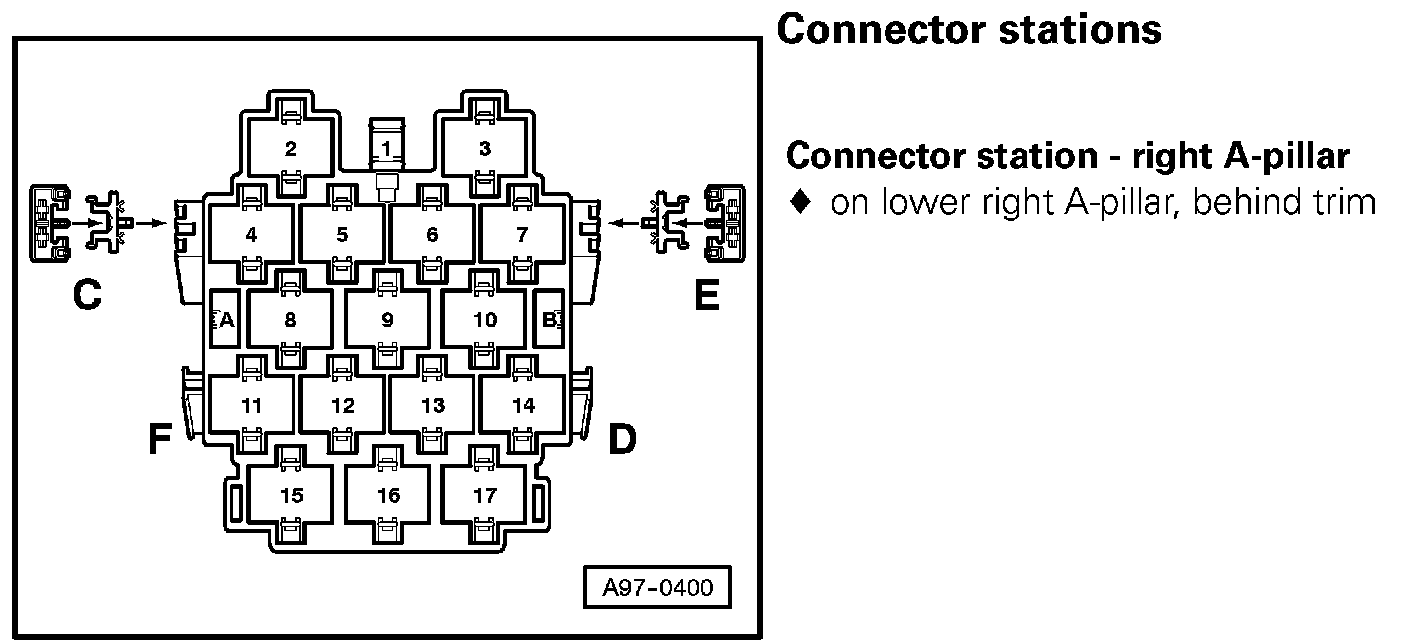

Connector station - right A-pillar





Fuse Colors:







Fuses:

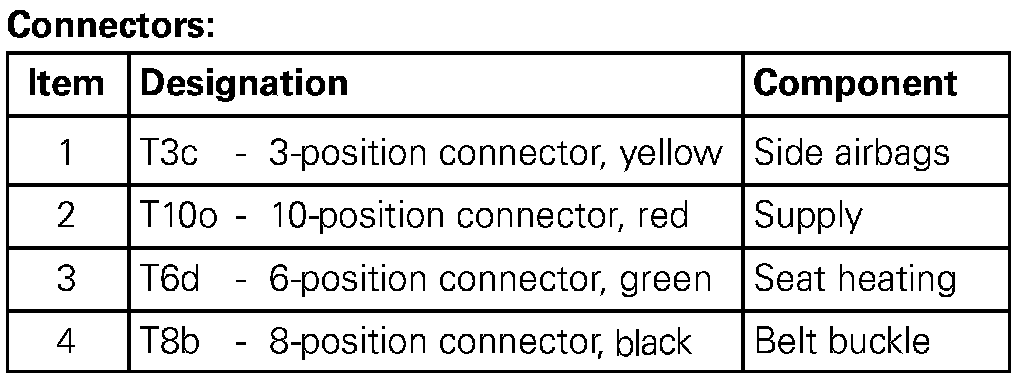

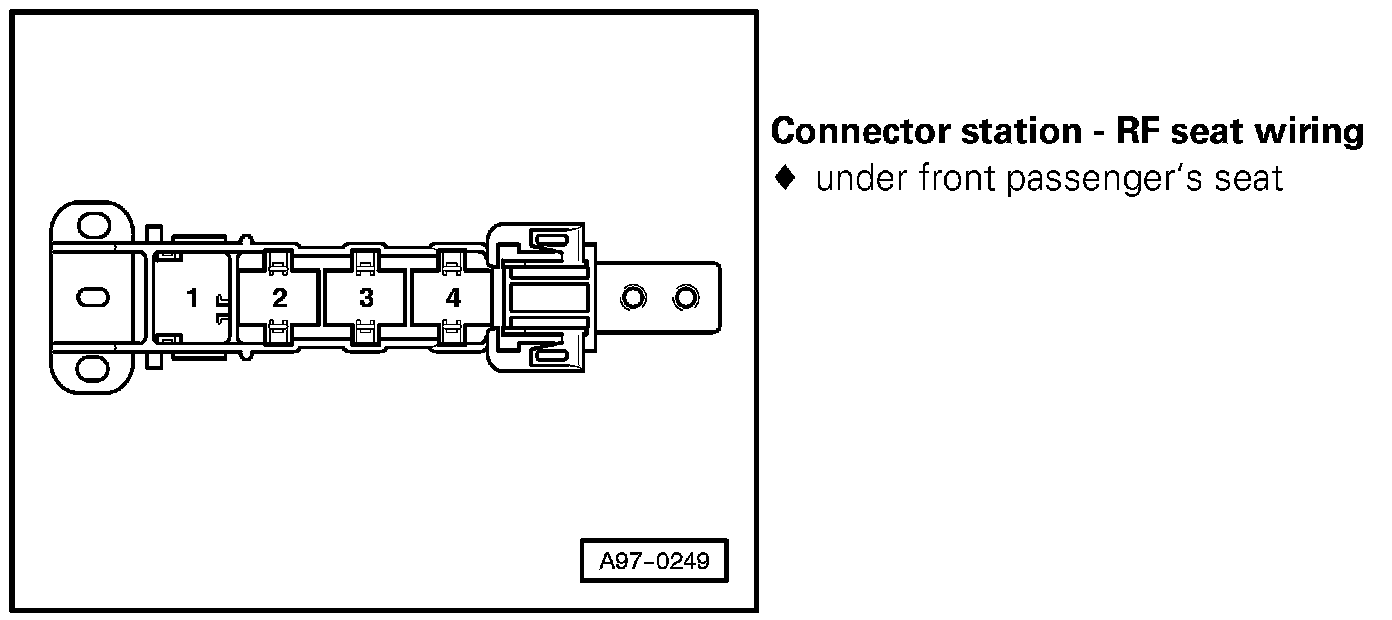

Connector station - RF seat wiring

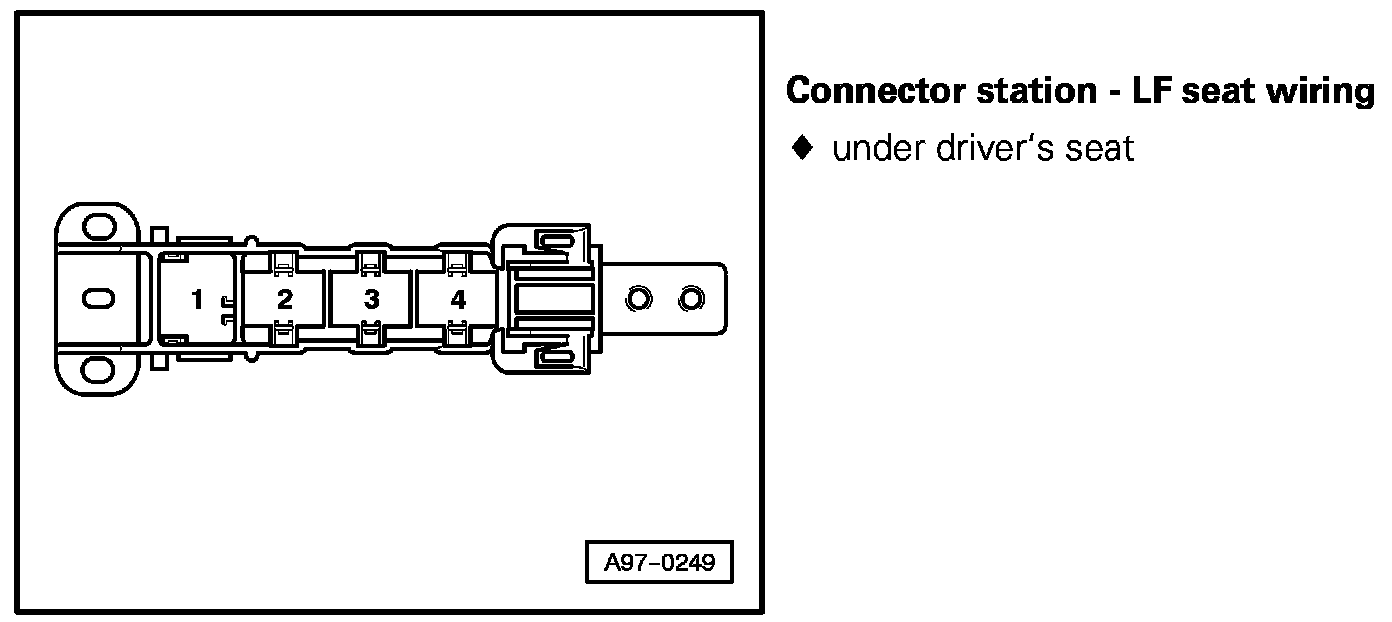

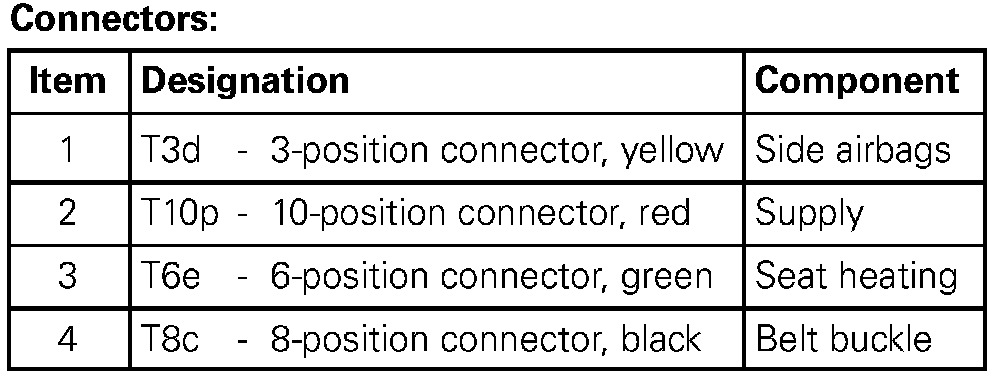

Connector station - LF seat wiring

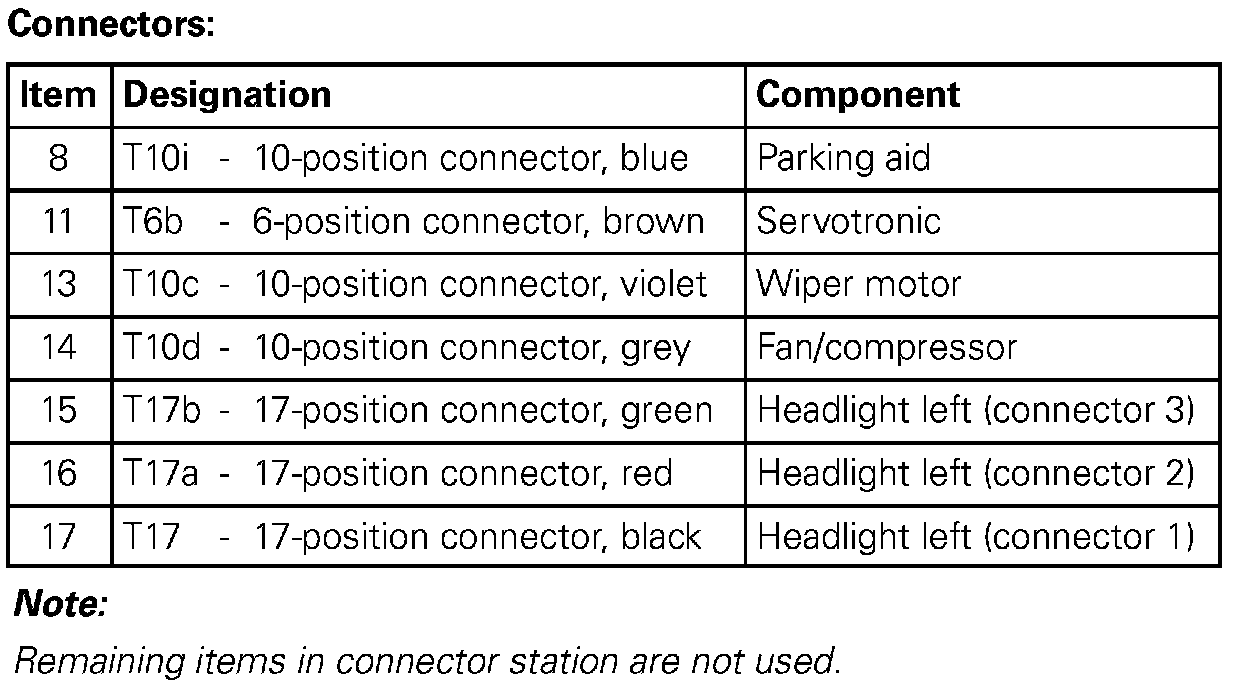

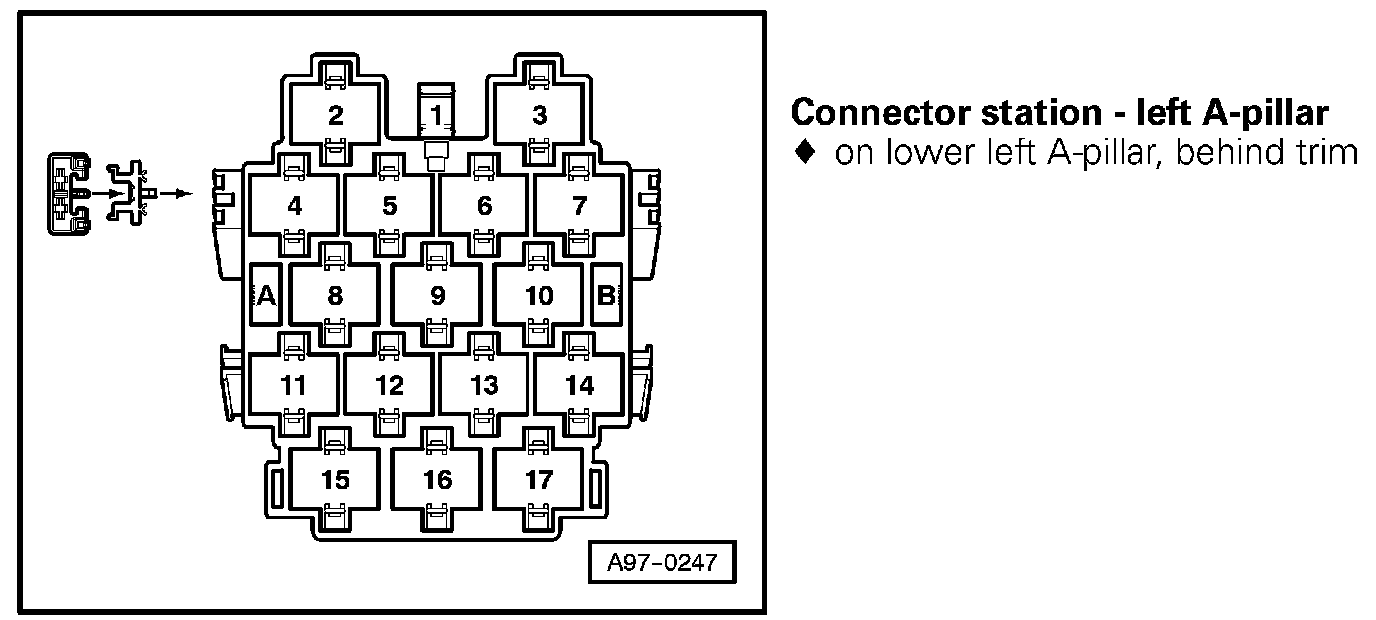

Connector station - left A-pillar










Connector station with threaded connection
