Instrument Panel Lamps and Switches

Glove Compartment Lamp Switch

Removing





- Open glove box.

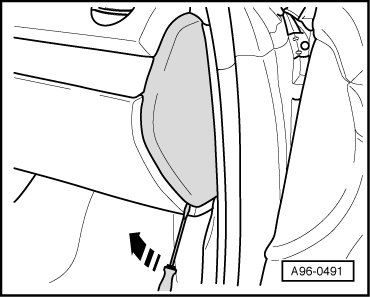

- Use screwdriver to pry off cover on right of instrument panel - arrow -.

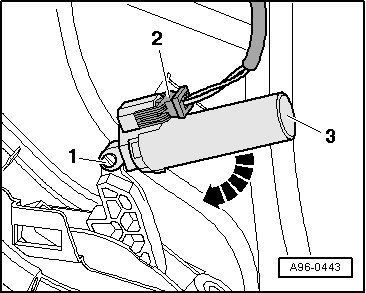

- Disconnect electrical connector - 2 -.





- Remove link pins - 1 -.

- Release the switch - 3 - clockwise and remove it.

• The glove compartment is removed in the illustration.

Installing

Install in reverse order.
