6 SPD. M/T 01X FWD

Back-up light switch F4, removing and installing - 6 Spd. M/T 01X Front Wheel Drive

Special tools, testers and auxiliary items required

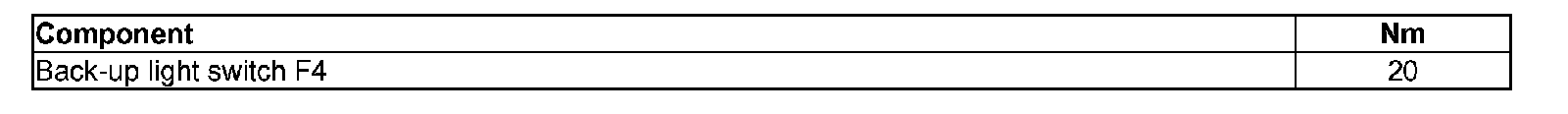

^ Torque wrench V.A.G 1331





Removing

- If installed, loosen quick release fasteners - 3 - and remove rear sound insulation - B -.





- Disconnect electrical connector - arrow - for back-up light switch F4 on transmission (right side).





- Remove back-up light switch F4 from selector shaft cover - arrow -.





Installing

- Screw back-up light switch F4 into selector shaft cover - arrow -.





- Attach electrical connector - arrow - for back-up light switch F4 on transmission (right side).
