Fuel Level Sensor G , Removing and Installing

Fuel Level Sensor G , Removing And Installing

Removing
Observe safety precautions
Observe rules for cleanliness
- Remove fuel delivery unit.

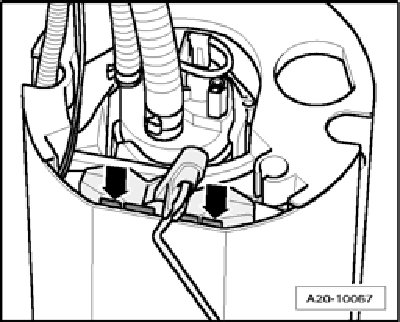

- Release retaining tabs - arrows - with a screwdriver and pull Fuel Level Sensor G upward and out.

CAUTION: Before remove electrical connectors on Fuel Level Sensor G, first release contact retaining tabs.

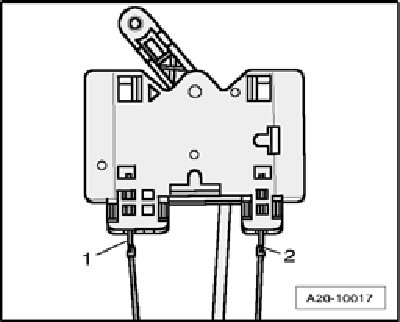

- Disengage electrical connectors - 1 - and - 2 - and disconnect them.

Installing
Installation is in reverse order of removal. Note the following:
- Connect electrical connections - 1 - and - 2 - and check that they are securely engaged.
- Insert fuel level sensor G in guides on fuel delivery unit and push down until it engages.
- Install fuel delivery unit, observing notes for connecting battery.
