Test Table



Test table - 01J, Continuously Variable Transmission (CVT)

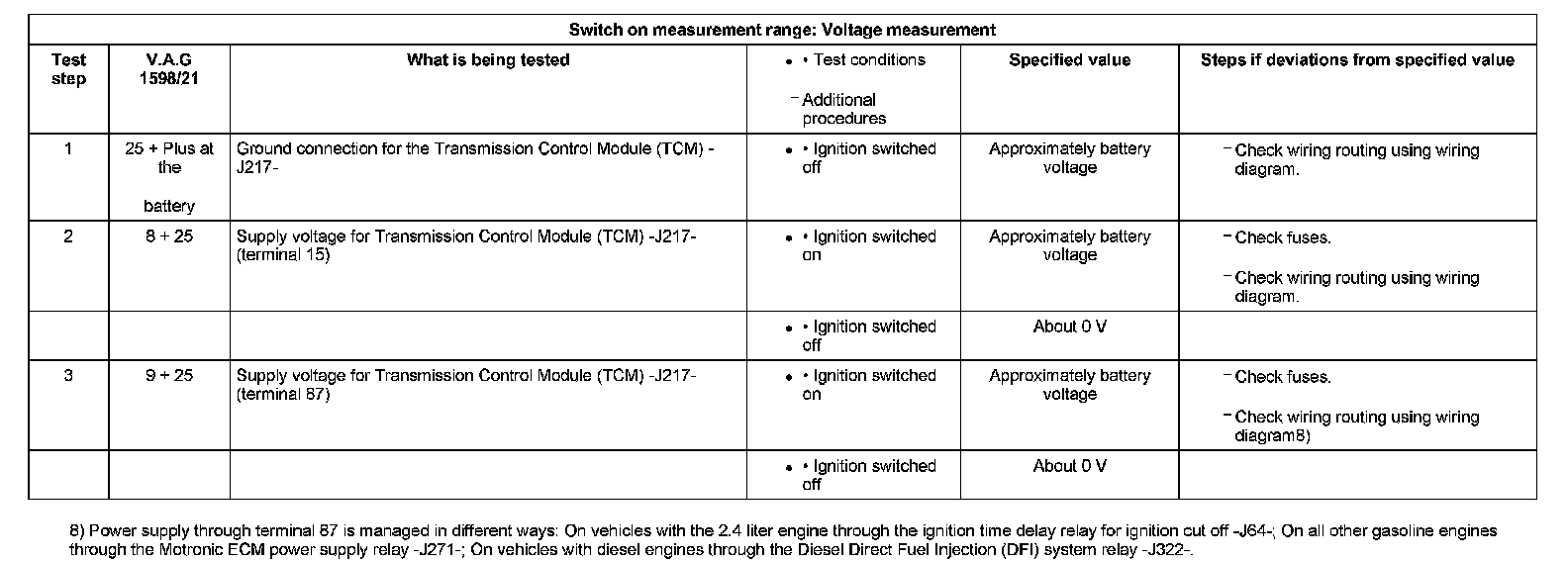

Test Step 1-3:

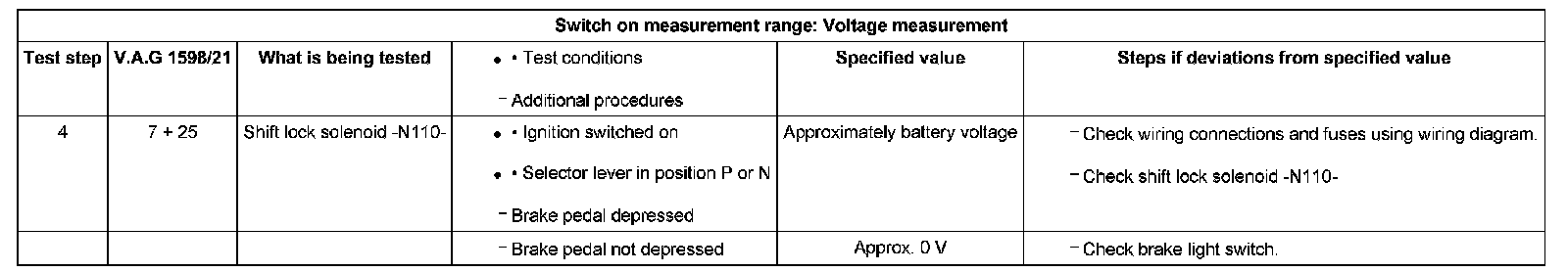

Test Step 4:

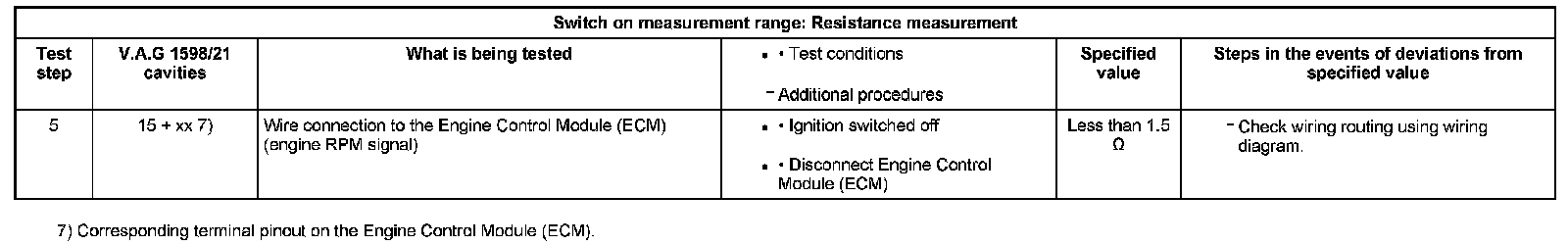

Test Step 5:
