Measured Value Block, Reading

Measured Value Block, reading - 01J, Continuously Variable Transmission (CVT)

CAUTION!
Please observe safety precautions

Test procedure

- Connect VAS 5051 Vehicle Diagnosis, Measurement and Information System, select vehicle system "02 Transmission Electronics". Ignition must be switched on.

or, depending on the desired operation:

- Start engine.





Display on VAS 5051

- Touch - 1 - diagnostic function "08 Read Measured Value Block".





Display on VAS 5051:

1 - Enter display group Max. input value = 255

- On key pad - 2 - enter desired 3-digit display group number and confirm entry by touching Q button.

Example:

- Enter "001" for "Display group number 001" and confirm by touching Q button.





Display on VAS 5051 for display group 001 to 255:

1 - Display group X

2 - Display field 1

Display field 2

Display field 3

Display field 4

Note:
^ If a display field is not being used, there will be no display.

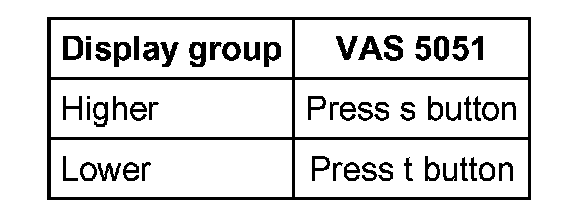

^ To switch to another display field, proceed as follows:





- End function "08 Read Measured Value Block" by touching < button.
