Camshaft Position Sensor, Checking

Camshaft Position Sensor, Checking

NOTE: Use only gold-plated terminals when servicing terminals in harness connector of Camshaft Position (CMP) Sensor G40.

Special tools, testers and auxiliary items required
- Multimeter.
- Wiring diagram.

Test requirements
- The Engine Control Module (ECM) J623 fuses OK.
- Battery voltage at least 12.5 volts.
- All electrical consumers such as, lights and rear window defroster, switched off.
- Vehicles with automatic transmission, shift selector lever into position "P" or "N".
- A/C switched off.
- Ground (GND) connections between engine/transmission/chassis OK.
- Ignition switched off.

Test procedure
- Perform a preliminary check to verify the customers complaint. General Diagnosis

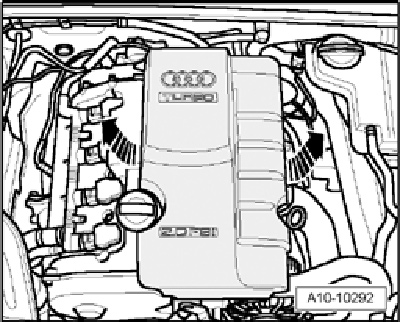

- Remove engine cover - arrows -.

Start diagnosis

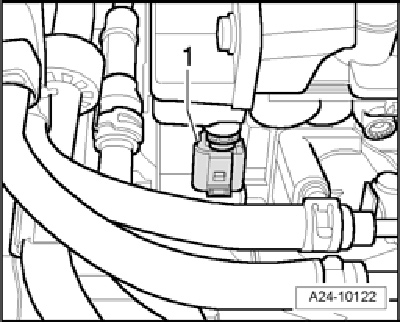

- Disconnect the Camshaft Position (CMP) Sensor G40 electrical harness connector - 1 -.
- Switch the ignition on.

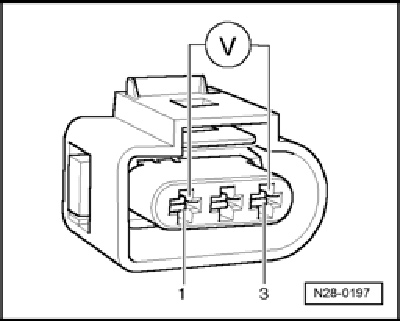

- Using a Multimeter , Check the Camshaft Position (CMP) Sensor G40 electrical harness connector terminals 1 to 3 for voltage.

Specified value: about 5.0 V

- Switch the ignition off.

If the specification was not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.
- Install the test box.

If the manufacturers test box is not being used. Perform the following step.
- Remove the Engine Control Module (ECM) J623.

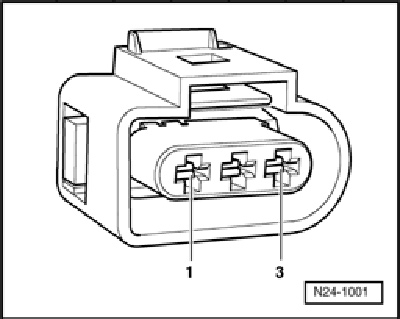

- Using a Multimeter , Check the Camshaft Position (CMP) Sensor G40 electrical harness connector to the Engine Control Module (ECM) electrical harness connector T60 for resistance.

Camshaft Position (CMP) Engine Control Module (ECM)
Sensor G40 electrical harness electrical harness connector T60
connector terminals terminals or test box sockets
1 26
2 44
3 14

Specified value: 1.5 Ohms Max.

If the specified value was not obtained:
- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).
- Check the wiring connection for damage, corrosion, loose or broken terminals.
- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was OK:
- Replace the Camshaft Position (CMP) Sensor G40.
- Erase the DTC memory. Diagnostic Mode 04 - Erase DTC Memory
- Perform a road test to verify repair.

If the DTC does not return:
Repair complete, Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes
- End of diagnosis.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was not OK:
- Replace the Engine Control Module (ECM) J623.
- Assembly is performed in the reverse of the removal.

Final procedures
After repair work, the following work steps must be performed in the mentioned sequence:
1. Check the DTC memory. Diagnostic Mode 03 - Read DTC Memory
2. If necessary, erase the DTC memory. Diagnostic Mode 04 - Erase DTC Memory
3. If the DTC memory was erased, generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

End of diagnosis
