A/C Unit Electrical Components

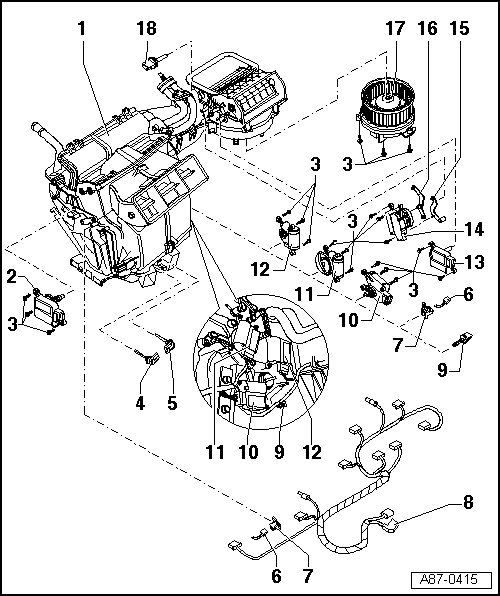

A/C unit Electrical Components





1 - Air conditioner unit

• Removing and installing, refer to => [ A/C Unit ] A/C Unit

• Installation and removal of the heating elements and air guides, refer to => [ A/C Unit Heating Elements and Air Ducts ]

• Disassembling and assembling, refer to => [ A/C Unit ]

2 - Left Temperature Door Motor (V158)

• With the left temperature flap potentiometer/actuator (G220)

• Lever color identification: Red

• Removing and installing, refer to => [ Left Temperature Door Motor ] A/C System Control and Regulation Components

3 - Screw

4 - Left Footwell Vent Temperature Sensor (G261)

• Removing and installing, refer to => [ Left Footwell Vent Temperature Sensor ] A/C System Control and Regulation Components

5 - Right Footwell Vent Temperature Sensor (G262)

• Removing and installing, refer to => [ Right Footwell Vent Temperature Sensor ] A/C System Control and Regulation Components

6 - Cable ties

7 - Wiring harness bracket

8 - A/C system wiring harness

9 - Evaporator Vent Temperature Sensor (G263)

• Removing and installing, refer to => [ Evaporator Vent Temperature Sensor ] A/C System Control and Regulation Components

10 - Right Temperature Door Motor (V159)

• With the right temperature flap potentiometer/actuator (G221)

• Lever color identification: Violet

• Removing and installing, refer to => [ Right Temperature Door Motor ] A/C System Control and Regulation Components

11 - Central Air Door Motor ( V70)

• With the central flap motor position sensor (G112 )

• Color identification of the cam plate: White

• Removing and installing, refer to => [ Central Air Door Motor ] A/C System Control and Regulation Components

12 - Defroster Door Motor (V107 )

• With the defroster flap motor position sensor ( G135)

• Lever color identification: Dark green

• Removing and installing, refer to => [ Defroster Door Motor ] A/C System Control and Regulation Components

13 - Control motor Door Motor ( V113)

• In vehicles with steering on the right also operates the fresh air flap (no back pressure flap motor (V71) installed)

• With the recirculation flap motor position sensor (G143)

• Lever color identification: Blue (light blue with additional pins for operating the fresh air flap in vehicles with steering on the right)

• Removing and installing, refer to => [ Recirculation Door Motor ] A/C System Control and Regulation Components

14 - Air Flow Door Motor (V71 )

• With the back pressure flap motor position sensor (G113)

• Color identification of the cam plate: Light blue

• Removing and installing, refer to => [ Defroster Door Motor ] A/C System Control and Regulation Components

15 - Lever

16 - Lever

17 - Fresh Air Blower Control Module (J126) and Fresh Air Blower (V2)

• Removing and installing, refer to => [ Fresh Air Blower Control Module and Fresh Air Blower ] A/C System Control and Regulation Components

• The fresh air blower control module (J126) is installed in the fresh air blower (V2) and cannot be replaced separately.

18 - Fresh Air Intake Duct Temperature Sensor (G89)

• Removing and installing, refer to => [ Fresh Air Intake Duct Temperature Sensor ] A/C System Control and Regulation Components
