Camshaft Adjustment Valve

Camshaft Adjustment Valve

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)

• Torx bit assortment (V.A.G 1766)

• Ratchet 1/4" (VAS 6234)

• Spring-type clip pliers (VAS 5024 A)

Removing

• Always replace gaskets and seals.

- Remove engine cover - arrows -.

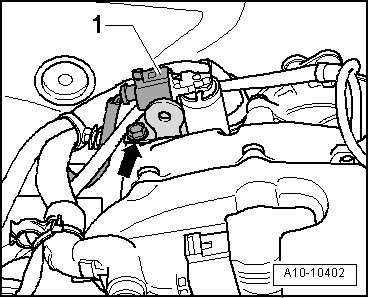

- Separate electrical connector - 1 -.





- Remove wiring harness bracket - arrow -.

• Do not pull out Camshaft Adjustment Valve 1 (N205 ) at connector.

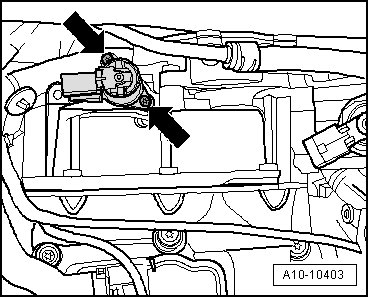

- Remove bolts - arrows - and remove Camshaft Adjustment Valve 1 (N205) from housing.





Installing

• Camshaft Adjustment Valve 1 (N205) as well as housing must be free of dirt and contamination.

• Remove new Camshaft Adjustment Valve 1 (N205) from packaging only prior to installation.

CAUTION!
• The Camshaft Adjustment Valve 1 (N205) must not experience any hits or impacts.

- Coat sealing ring with engine oil.

- Carefully insert Camshaft Adjustment Valve 1 ( N205) into housing and press it in perpendicular to valve axle by hand as far as stop.

- Install bolts and tighten to 4 Nm with Torque Wrench (V.A.G 1783), Ratchet Adapter 1/4 (VAS 6234 ),TORX-Bit T20 and (Bithalter) from TORX bit set (V.A.G 1766).

The rest of assembly is basically a reverse of disassembling sequence.

Tightening Specifications
