Camshaft Adjuster

Camshaft Adjuster

Special tools, testers and auxiliary items required

• Multi-point socket (T40080)

• Camshaft locator (T10252)

• Toothed Belt Tensioner (T10020)

• Locking Pin (T10115)

Removing

- Remove high-pressure pump.

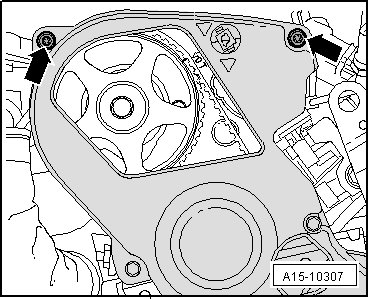

- Remove bolts - arrows -.





- Remove cylinder head cover. Refer to => [ Cylinder Head Cover ] Service and Repair

- Remove vacuum pump.

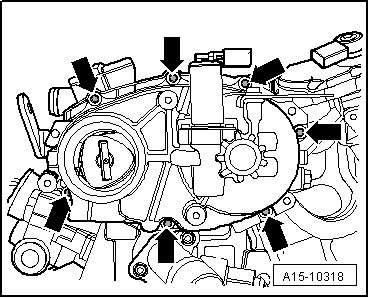

- Remove camshaft adjuster housing - arrows -.

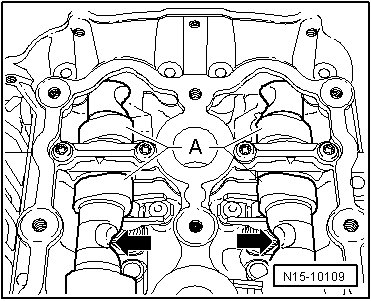

- Bring marking on camshaft gear to alignment with marking on toothed belt guard. Recesses - arrows - now point to each other vertically.

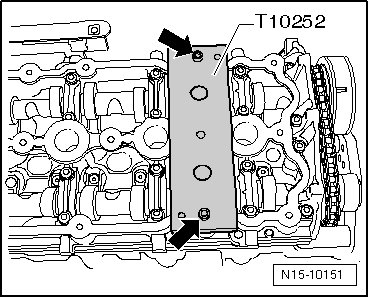

- Install camshaft locator (T10252) as shown and secure - arrows -.





- Loosen mounting bolt from camshaft adjuster using socket insert (T40080).

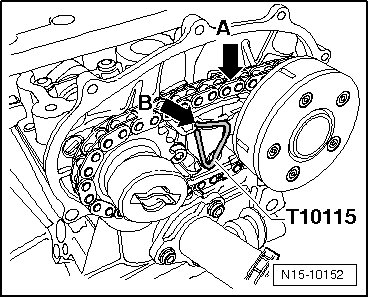

- Compress chain tensioner - arrow A - and secure it using Locking Pin (T10115) - arrow B -.





- Remove mounting bolt from camshaft adjuster and remove it with chain.

Installing

• The camshafts must be fixed in place with camshaft locating tool (T10252).





- Place chain on to camshaft adjuster.

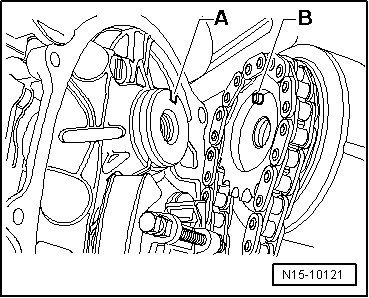

- Hold camshaft adjuster in front of exhaust camshaft so that the notch - A - and pin - B - are positioned across from one another.

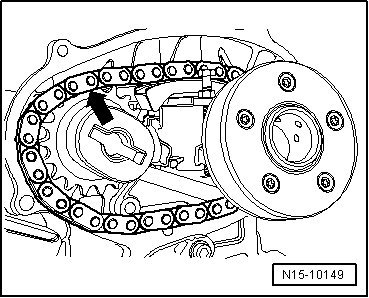

- Place chain in this position on to chain sprocket of intake camshaft, first at top - arrow -.

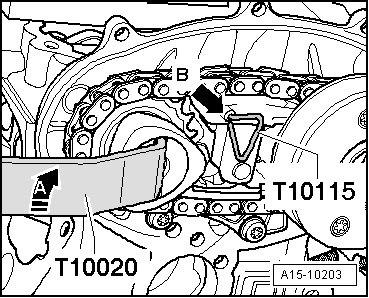

- Slowly turn intake camshaft with Toothed Belt Tensioner (T10020) in direction of - arrow A - until camshaft adjuster fits onto camshaft.





• If pin does not fit into notch: Remove chain and place chain on again.

- Tighten camshaft adjuster screw. To do so, use socket insert (T40080).

- Remove Locking Pin (T10115) - arrow B -.





The rest of assembly is basically a reverse of disassembling sequence.

- Install intake manifold.

- Install high pressure pump.

- Install vacuum pump.

Tightening Specifications

Cylinder head, camshafts. Refer to => [ Cylinder Head, Camshafts Assembly Overview ] Cylinder Head, Camshafts Assembly Overview

Cylinder head, assembly overview. Refer to => [ Cylinder Head Assembly Overview ] Cylinder Head Assembly Overview
