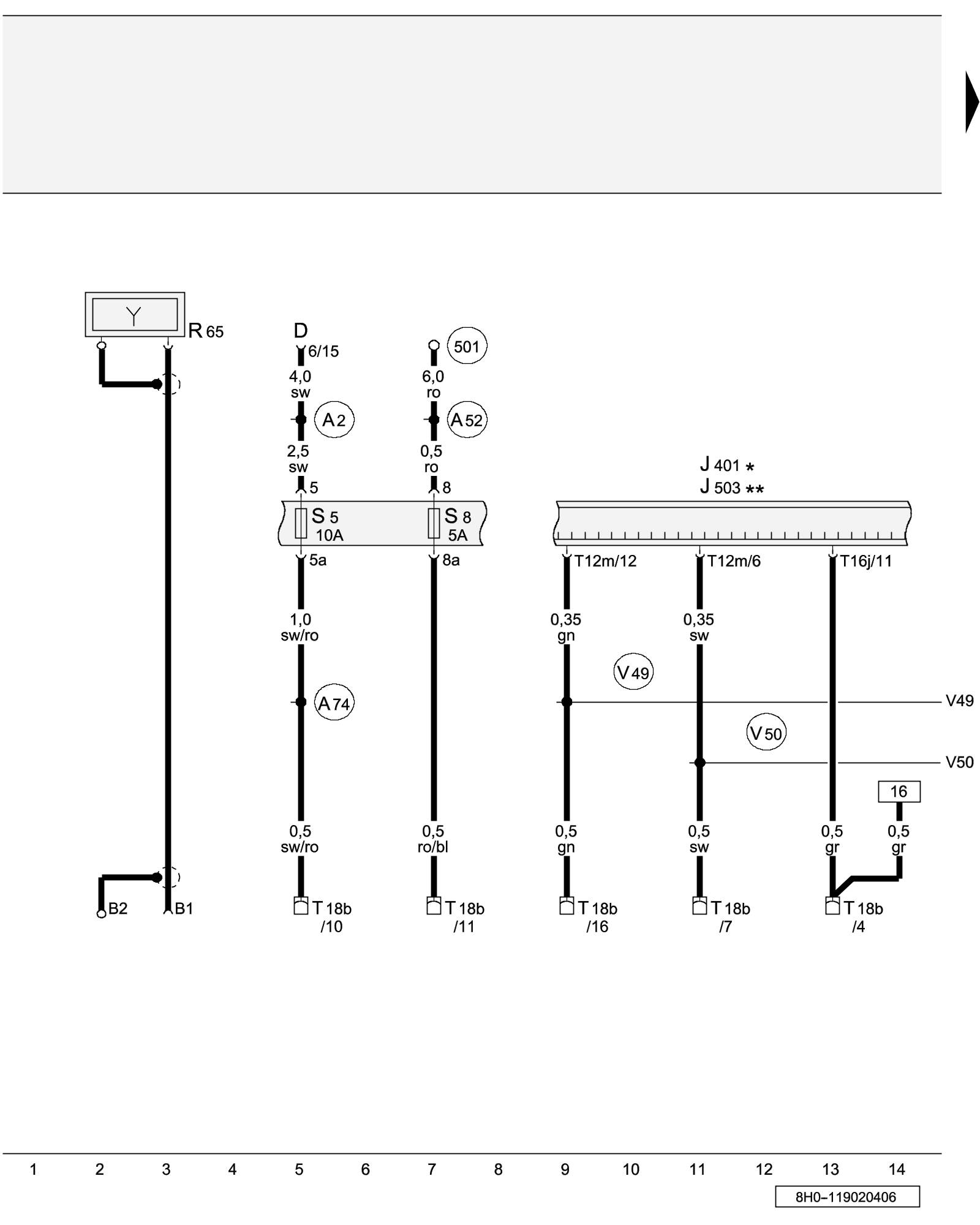

Diagram 119/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses, 18-Pin Connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/Starter Switch

J401 - Navigation System with CD Drive Control Module Navigation System Overview

J503 - Radio/Navigation Display Control Module Navigation System Overview

R65 - Telephone Antenna Telephone System Overview

S5 - Fuse (on fuse/relay panel)

S8 - Fuse (on fuse/relay panel)

T12m - 12-Pin Connector, green, Connector C

T16j - 16-Pin Connector, black, Connector D

T18b - 18-Pin Connector, black, near glove compartment, Connector A

(501) - Threaded Connection 2 - terminal 30 (on relay panel)

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A52) - Plus Connection 2 (30) (in instrument panel wiring harness)

(A74) - Connection (15a - Fuse 5 (in instrument panel wiring harness)

(V49) - Low Frequency + Connection (in communication wiring harness)

(V50) - Low Frequency - Connection (in communication wiring harness)

* - with Navigation system RNS-E only

** - with Navigation system RNS-Low only

Next Diagram 119/3 (Tracks 15-28)
