Noise Insulation Panel Assembly Overview

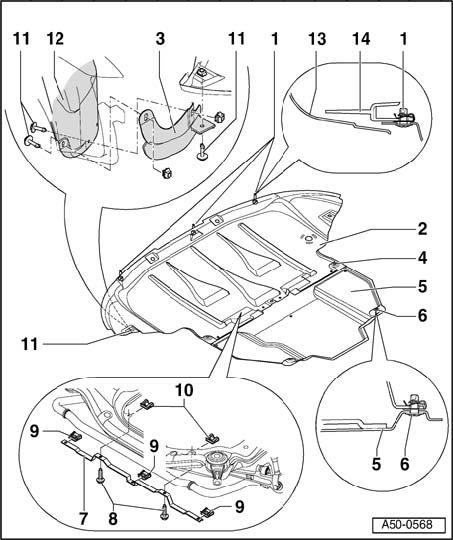

Noise Insulation Panel - Assembly Overview







1 - Quick release screw
- Only loosen these quick release screws for lock carrier service position.
- Qty. 3

2 - Noise insulation, front
3 - Wheel spoiler
4 - Quick release screw
- Qty. 3

5 - Noise insulation panel rear
- Installed only with specific engine versions.

6 - Quick release screw
- Qty. 2

7 - Noise insulation mount
- Marking (recess) must point to left vehicle side.

8 - Screw
- 7 Nm
- Qty. 2

9 - Spring nut
- Qty. 3

10 - Spring nut
- Qty. 2

11 - Clamping pin
- Qty. 6

12 - Wheel housing liner
13 - Bumpers
14 - Lock carrier with attachments
