Engine Compartment Covers

Engine Compartment Covers

Model variations

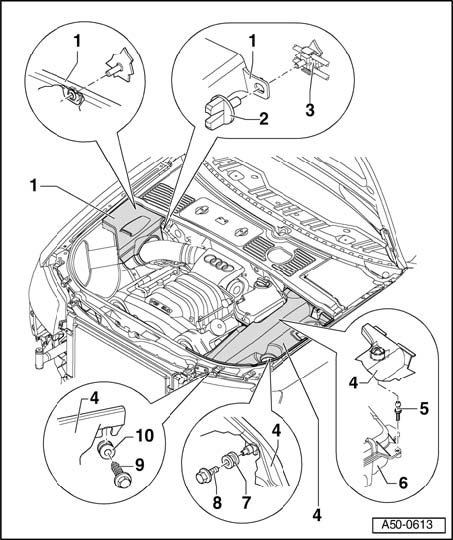

1 - Right engine compartment cover
2 - Toggle bolt
3 - Brake line bracket
4 - Left engine compartment cover
5 - Ball stud
6 - Coolant reservoir
7 - Grommet
8 - Bolt
- 3 Nm

9 - Bolt
- 9 Nm

10 - Grommet
