Side Airbag Guide, Removing and Installing

Side Airbag Guide, Removing and Installing

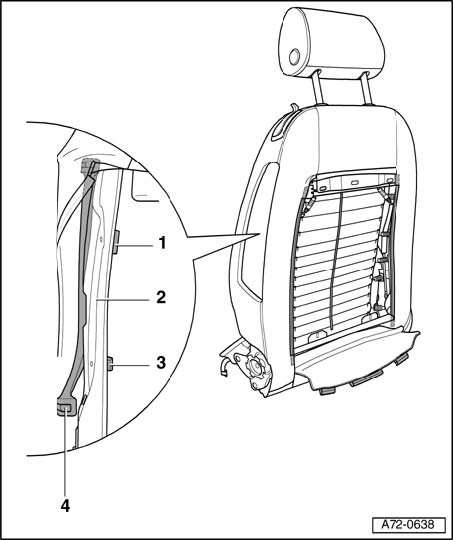

1 - Mount
2 - Backrest frame
3 - Clip
4 - Side airbag guide

Removing
- Remove seat.
- Remove backrest cover panel.
- Remove side airbag.
- Press clip -3- together from inside of backrest frame - 2 -.
- Pry out mount -1- from inside.
- Remove side airbag guide -4-.

Installing
- Install in reverse order of removal.
