Removing and Installing Easy-Entry Facility Trim



Removing and Installing Easy-entry Facility Trim

Removing

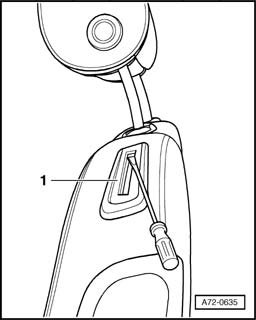

- Use flat screwdriver to pry out trim - 1 -.

Installing

- Install easy-entry facility trim - 1 - in reverse order of removal.
