Detaching cover and padding from seat pan

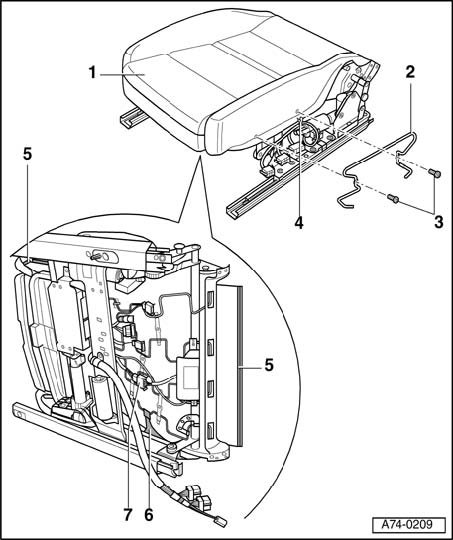

1 - Cover and padding

Removing
- Remove seat.
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove side trim, outboard side.
- Remove side trim, inboard side.
- Remove backrest.
- Remove bolts - 3 - (2x).
- Remove clip - 2 -.
- Disconnect seat heating connector - 7 -.
- Release clip - 4 -.
- Pry out surrounding securing strips - 5 -.
- Disengage tab - 6 -.
- Remove cover and padding - 1 -.
- On vehicles with ISOFIX holder and new cover fabric - 1 -, cut slots in fabric cover at location of ISOFIX holder.

2 - Bracket
3 - Bolts (2x)
4 - Clip
5 - Surround securing strips
6 - Tab
7 - Seat heating connector

Detaching cover from padding

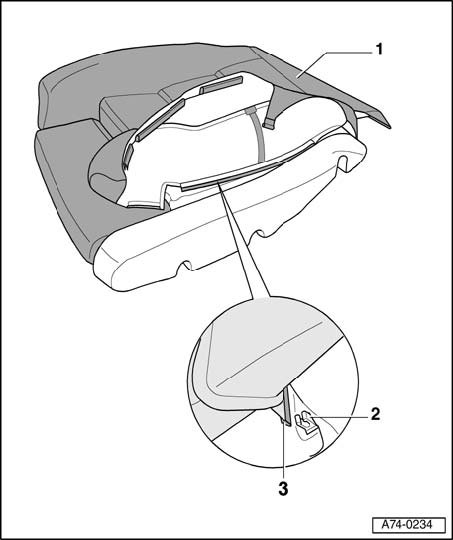

1 - Seat cover
- Use a screwdriver to pry the securing strips - 3 - out of the plastic clips - 2 -.
- Remove cover - 1 -.
- On vehicles with ISOFIX holder and new cover fabric - 1 -, cut slots in fabric cover at location of ISOFIX holder.

2 - Plastic clips
3 - Securing strips

Installing
- Replace damaged plastic clips.
- First press in the plastic clips of the cross members.
- Installation is in reverse order of removal.
