Hydraulic System

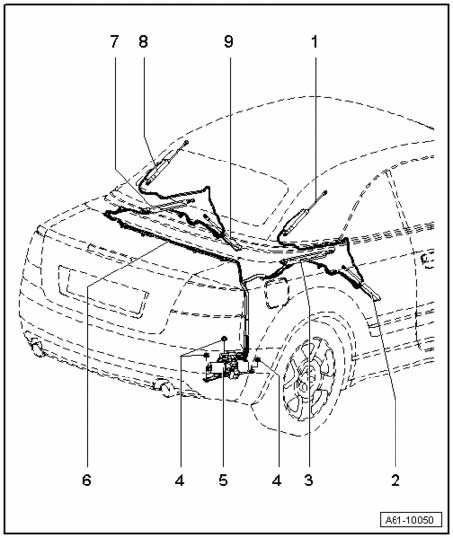

Hydraulic System - Assembly Overview







1 - Right bracket drive motor cylinder
- Removing

2 - Right main drive motor cylinder
- Removing

3 - Right convertible top compartment cover drive motor cylinder
- Removing
- 4-Nut
- 3x
- 10 Nm

5 - Hydraulic pump with valve block
- Removing

6 - Hydraulic lines
7 - Left convertible top compartment cover drive motor cylinder
- Removing

8 - Left bracket drive motor cylinder
- Removing

9 - Left main drive motor cylinder
- Removing







Oil filler screw

Pfeil - 2 Nm







Hydraulic pump housing

Arrow - 6 Nm







Solenoid valves

1. 6 Nm
2. 22 Nm







Connecting plate

Arrow - 10 Nm
