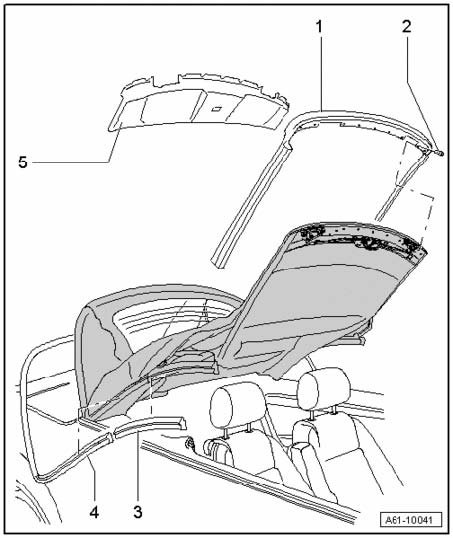

Convertible Top Frame Seals - Assembly Overview

Convertible Top Frame Seals - Assembly Overview







1 - Front roof frame seal
- Removing and installing

2 - Screw
- 5.2 Nm

3 - Center roof frame seal
- Removing and installing

4 - Bracket/rear roof frame seal
- Removing and installing

5 - Front rail trim
- Removing and installing
