Hydraulic Cylinder, Removing and Installing (Page No 84)

Hydraulic Cylinder, Removing And Installing

Hydraulic lines, removing and installing.







Bracket drive motor cylinder

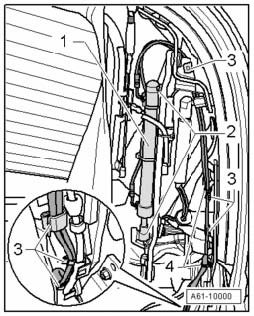

- Remove bracket hydraulic cylinder - 1 - from ball sockets - 2 -.
- Unclip hydraulic lines from brackets - 3 - (Qty. 6) and loosen cable ties - 4 - (Qty. 2).
- Remove hydraulic lines and cylinders from convertible top frame and place them in convertible top compartment.

Convertible top compartment cover cylinder

NOTE: The convertible top compartment cover cylinder is installed as described above.







Main drive cylinder

- Remove convertible top switch unit bolts - 1 -. The switch unit consists of Convertible Top Closed Position Switch F202 and Convertible Top Open Position Switch F171.
- Carefully remove convertible top switch unit from bolting point mounts.
- Remove main hydraulic cylinder securing pins - 2 -.
- Loosen nuts on main hydraulic cylinder bracket until they are removed from the center and can be stored in the vehicle.
- Installation is reverse of removal.
