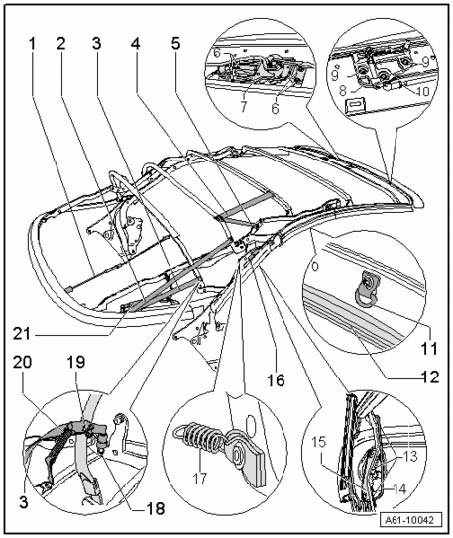

Attachments - Assembly Overview

Attachments - Assembly Overview







1 - Guide cable - rear window
- Removing

2 - Bracket strap - rail "4"
- Removing

3 - Bracket strap - rail "5"
- Removing

4 - Rubber strap for rail "3" and "4"
- Removing

5 - Center brace strap - rail "4"
- Removing

6 - Convertible Top Locking Motor V223 bolts
- 10 Nm

7 - Convertible Top Locking Motor V223, (Convertible Top Lock Switch (open) F294, Convertible Top Lock Switch (closed)F295)
- Removing

8 - Convertible top lock
- Removing
- Adjusting

9 - Convertible top lock bolts
- 9 Nm

10 - Nut
- 6 Nm

11 - Cable eyelet- headliner
- Removing

12 - Plastic profile
- Only on first generation vehicles.
- Removing

13 - Screw
- 4 Nm

14 - Tensioning wire - headliner
- Removing

15 - Tensioning element - headliner
- Removing

16 - Convertible top cover tensioning cable
- Removing

17 - Cable spring - headliner (lengthwise)
- Removing

18 - Cable spring - headliner (across)
- Removing

19 - Cable eyelet- headliner
- Removing

20 - Center brace spring - rail "5"
- Removing

21 - Bracket insulation element
- Removing
