Rollover Protection Impact Bar, Removing and Installing

Rollover Protection Impact Bar, Removing and Installing







- Extend rollover bar. Refer to guided fault-finding, body, general body repairs, 01 systems with self-diagnosis capability, Airbag 8.4E, Functions-Airbag 8.4E J234-Airbag Control Module, output DTM.

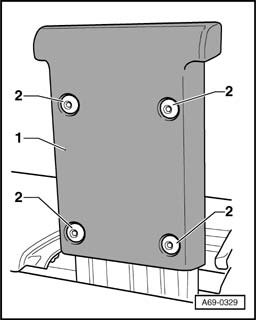

- Remove bolts - 2 - (4x). Tightening torque 5 Nm
- Remove impact bar - 1 - upward.
- When installing, push the back of the impact bar under the guide.

Installing

- Installation is in reverse order of removal.
