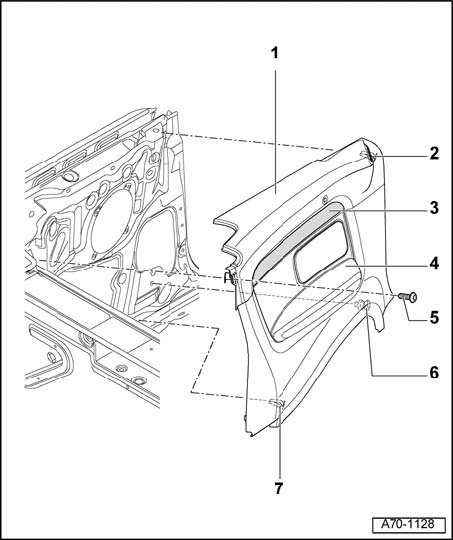

Rear Side Trim, Assembly Overview

Rear Side Trim, Assembly Overview







1 - Side trim

Removing
- Remove rear bench seat.
- Remove rear seat backrest.
- Remove decorative panel.
- Unclip center piece - 4 -.
- Remove bolt - 5 -.
- Reach into side trim - 1 - and unclip side trim - 1 - at clips - 2 -, - 7 - and - 6 -.
- Remove side trim - 1 -.

- If side trim - 1 - is to be replaced:
- Remove anchorage point for outer floor panel.

Installing

NOTE: After installation ensure that seal is pulled correctly over side trim.

- Pull back clip - 6 - to loosen clip - 6 -.
- Install side trim - 1 - in reverse order of removal.

2 - Clip
3 - Decorative panel
4 - Center piece
5 - Bolt
6 - Clip
7 - Clip
