Removing and Installing Storage Compartment, Cup Holder and Switch Mount

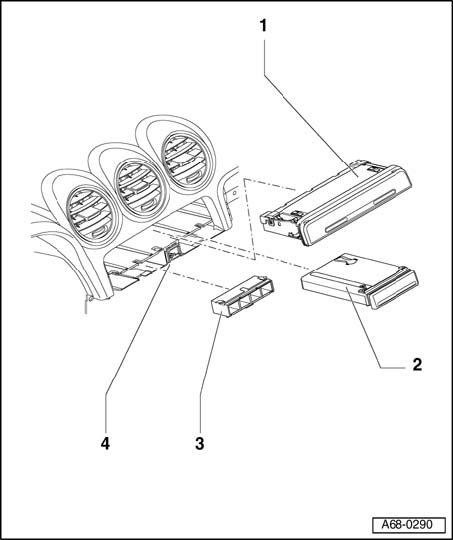

Removing and Installing Storage Compartment, Cup Holder And Switch Mount







1 - Storage compartment
- Removing and installing

2 - Cup holder
- Removing and installing

3 - Switch mounting
- Removing and installing

4 - Hazard warning switch mounting
- Removing and installing hazard warning switch:







Removing and installing storage tray

Removing:







- Insert two thing wedge like tools - 1 - or scrapers between the instrument panel and storage tray - 2 - in the position of the retaining tabs. See - arrows - in illustration 68A118.







- Depress retaining tabs with thin wedge type tool and remove storage tray - 2 -.

Installing

- Installation is in reverse order of removal.







Removing and installing cup holder

Removing

- Remove tray.
- Using a screwdriver, push the retainer tabs - arrows - down while pulling the cup holder out.

Installing

- Installation is in reverse order of removal.







Removing and installing switch mount

Removing

- Remove tray.
- Remove switch in switch panel.
- Using a screwdriver, push the retainer tabs - arrows - down while pulling the switch mount out.

Installing

- Installation is in reverse order of removal.
