Central Tube, Component Locations

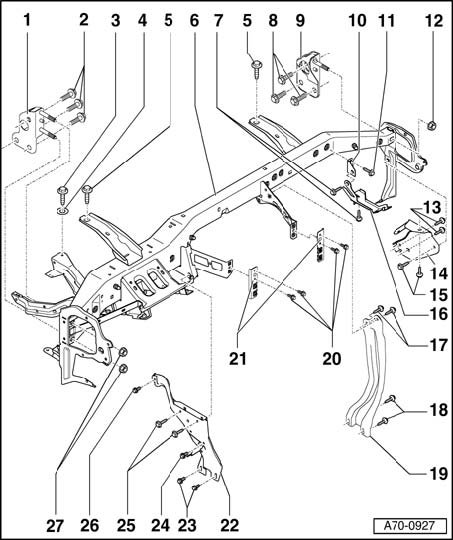

Components Locations, Assembly Overview







1 - Angle bracket, left
- For central tube

2 - Bolts (3x)
- Tightening torque 23 Nm

3 - Bolt
- Tightening torque 9 Nm

4 - Sealing washer
5 - Bolt
- Tightening torque 6 Nm

6 - Central tube
7 - Bolts (2x)
- Tightening torque 9 Nm

8 - Bolts (3x)
- Tightening torque 23 Nm

9 - Angle bracket, right
- For central tube

10 - Angle bracket
11 - Bolt
- Tightening torque 9 Nm

12 - Nut
- Tightening torque 35 Nm

13 - Bolts (2x)
- Tightening torque 8 Nm

14 - Bracket
- For air conditioner unit

15 - Bolts (2x)
- Tightening torque 9 Nm

16 - Brace
17 - Bolts (2x)
- Tightening torque 9 Nm

18 - Bolts (2x)
- Tightening torque 9 Nm

19 - Support
20 - Bolts (4x)
- Tightening torque 5 Nm

21 - Adapter center section
22 - Support
23 - Bolts (2x)
- Tightening torque 9 Nm

24 - Bolt
- Tightening torque 8 Nm

25 - Bolts (2x)
- Tightening torque 9 Nm

26 - Bolt
- Tightening torque 8 Nm

27 - Nut
- Tightening torque 35 Nm
